ead free Press Fittings, Brass Male Union, Press x MPT Press Joining

Lead free Press Fittings, Brass Male Union, Press x MPT Press Joining

● Lead Free Brass

● Press-to-Connect

● No Flame, Solder or Flux

● Can be installed underground

● NSF/ANSI 61 and NSF/ANSI 372 Approved

• Product Introduction:

The Fada Press System Eco Brass male union features an inboard EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds, with no flame, solder or flux. The male union has a press connection and male NPT thread. The fitting provides a method for adapting a press connection to a threaded connection.

  In addiction to its inherent qualities of beauty, durability and low maintenance, copper's reusability makes it an ideal application in sustainable projects.

  The small diameter fittings 1/2”-2” are made from naturally lead free brass. EPDM O-ring are pre-installed and lubricated with ANSI/NSF 61 listed silicone oil.

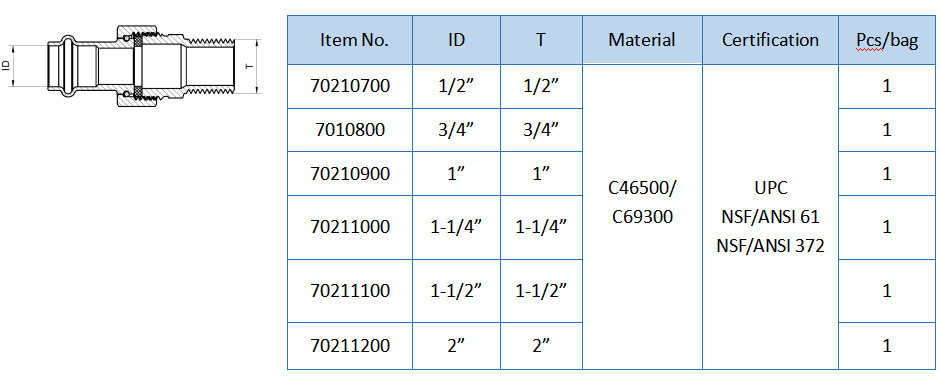

• Product Specification:

Press Series Products:

● Including couplings, elbows, tees, adapters

● Extensive offering of reducing tees

● Leak detection feature identifies un-crimped connections

● Compatible with most common pressing tools and jaws in the market

● EPDM seals can be factory-installed &lubricated or by customers.

● Packaged in common industry quantities.

Accessory:

   EPDM O-ring

 Installation Instruction:

1. Deburring tube ID and OD with file.

2. Check seal for correct fit. Do not use oils or lubricants.

3. Mark proper insertion depth for well sealed.

4. While turning slightly, slide press fitting onto tubing to the marked depth.

     The end of tubing must contact stop.

  5. Open the jaw and place at right angles on the fitting.

6. Start pressing process and hold the trigger until the jaw has engaged the fittings.

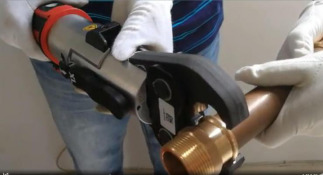

Pressing tool and jaws:

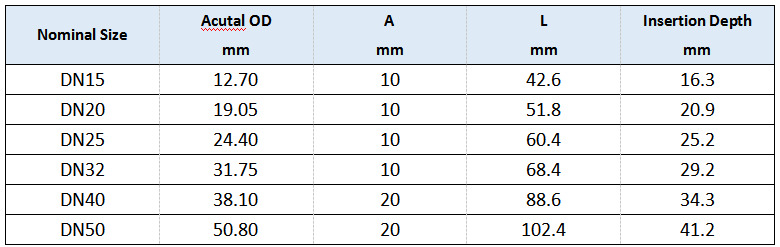

• DN15-50 Fittings Space Requirements:

Frequently Asked Questions:

     Q: What does EPDM stand for?

     A: Ethylene-Propylene Diene Monomer

 Q: What are the most common errors made when installing s Press Fittings?

     A: Not adequately deburring the end of the tubing, and not inserting the tube far enough into the press fitting.
