LED BACKLIT PANEL

Min. Order: 100 piece
Product Parameters

Serial No. : YLA414P-N

Size(mm):595*595*32mm

Material:Alu./PS

Place of origin:Zhejiang China

Color:white

ZHEJIANG YONGYAO LIGHTING CO.,LTD

Support level: A

YONGMING RD. NO.18 . TAIZHOU,ZHEJIANG

Registered capital:1000

Founded:1989

Number of companies:50-200人

Export scale:

Contact: 俞**

E-Mail:Sign In

Tel:Sign In

The detailed information

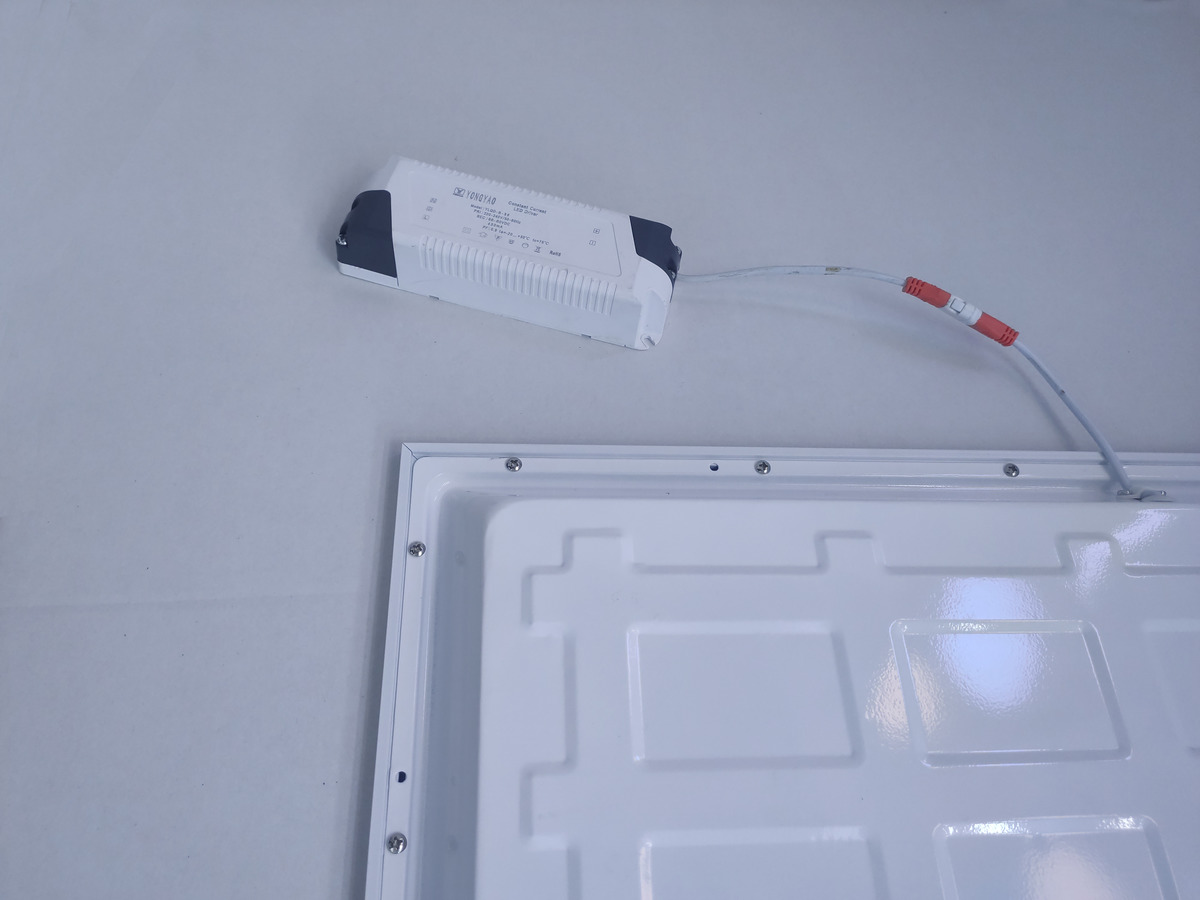

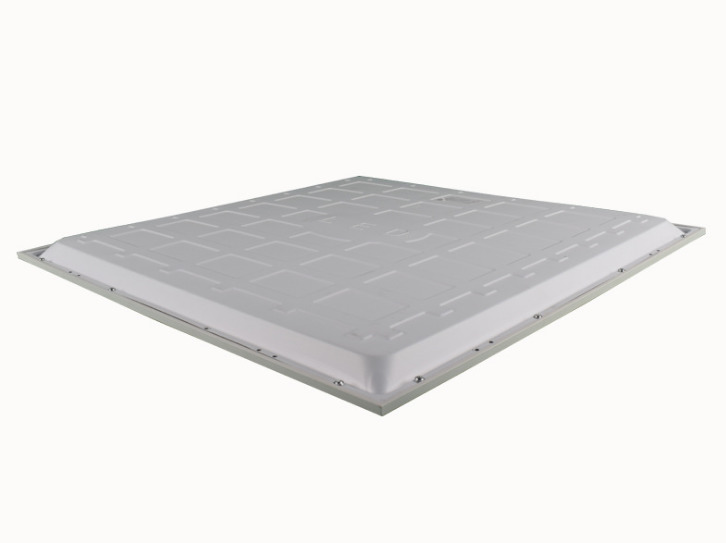

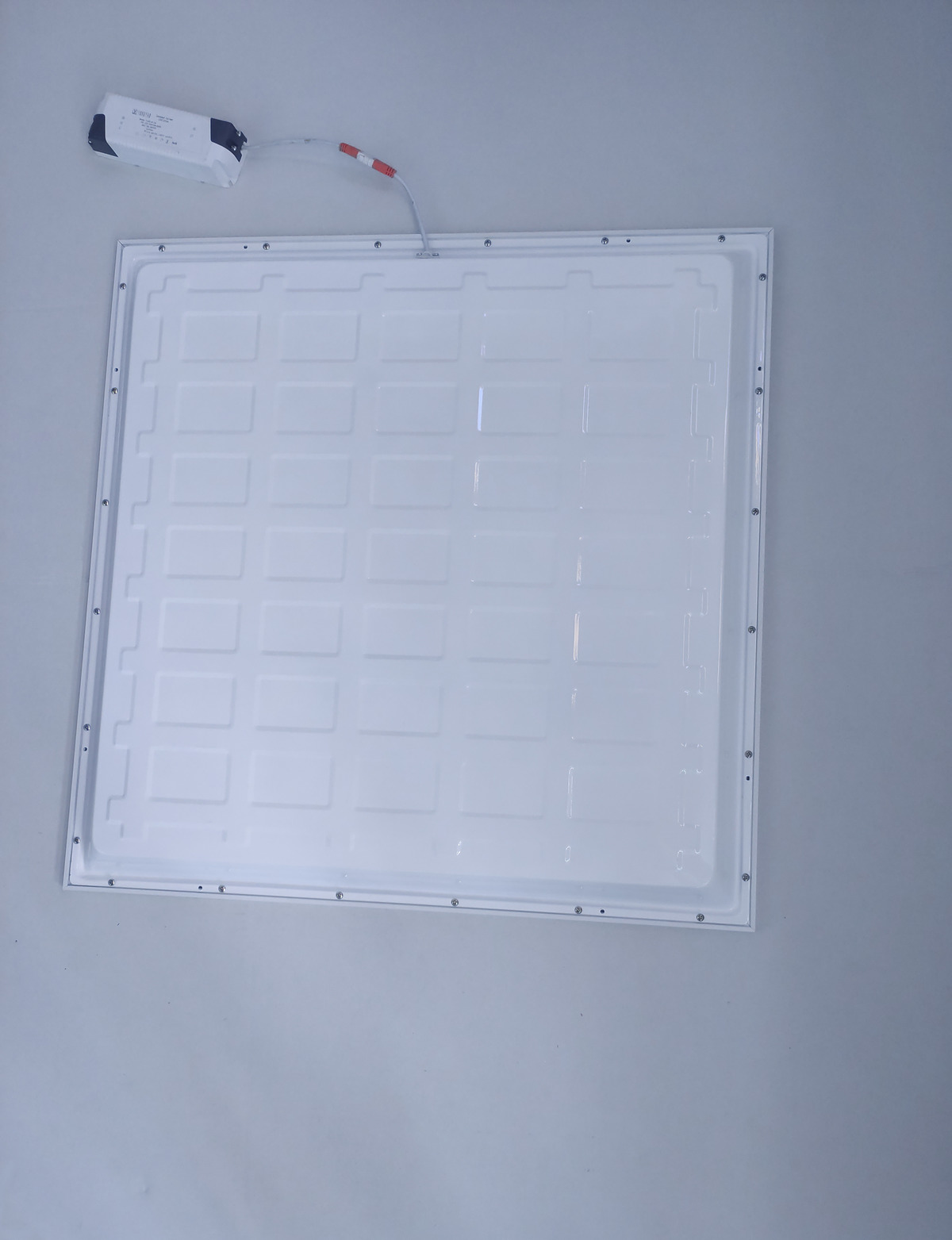

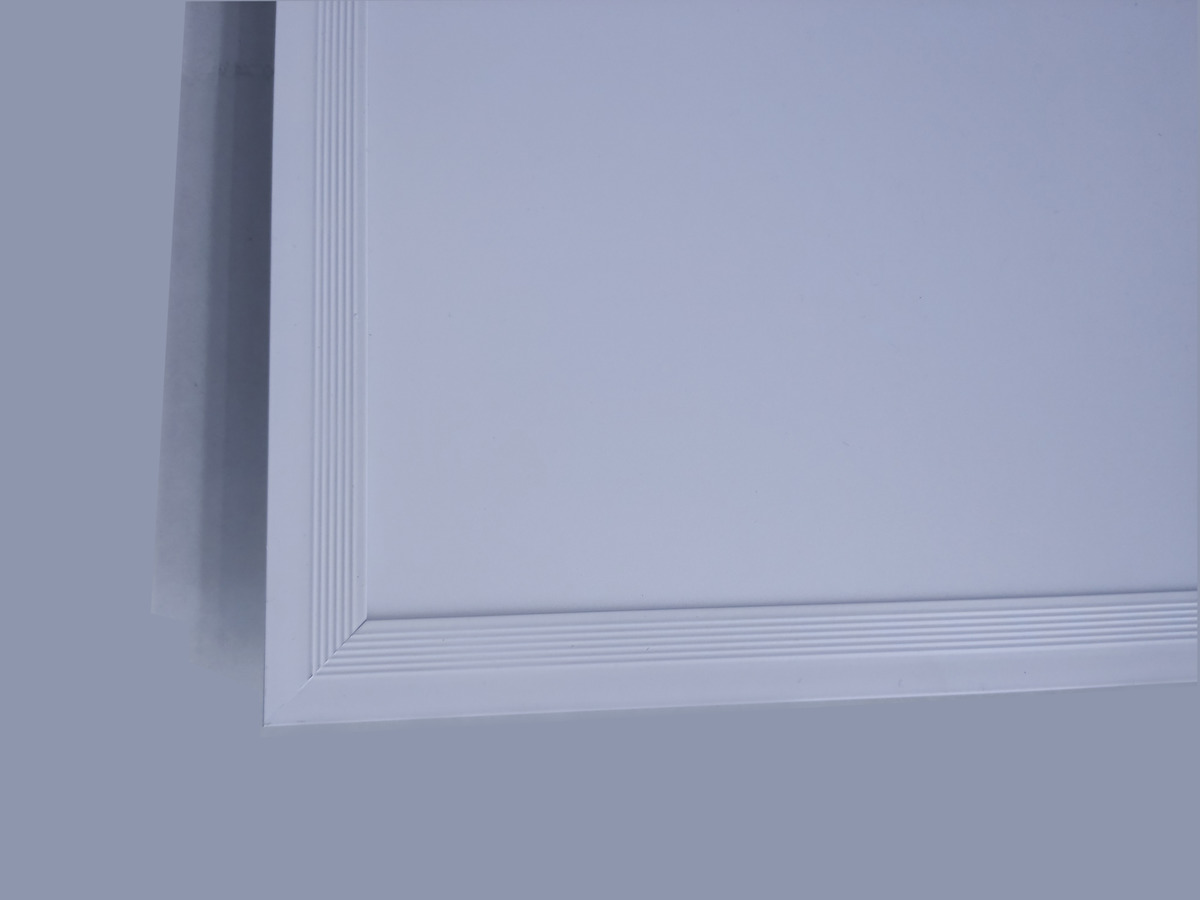

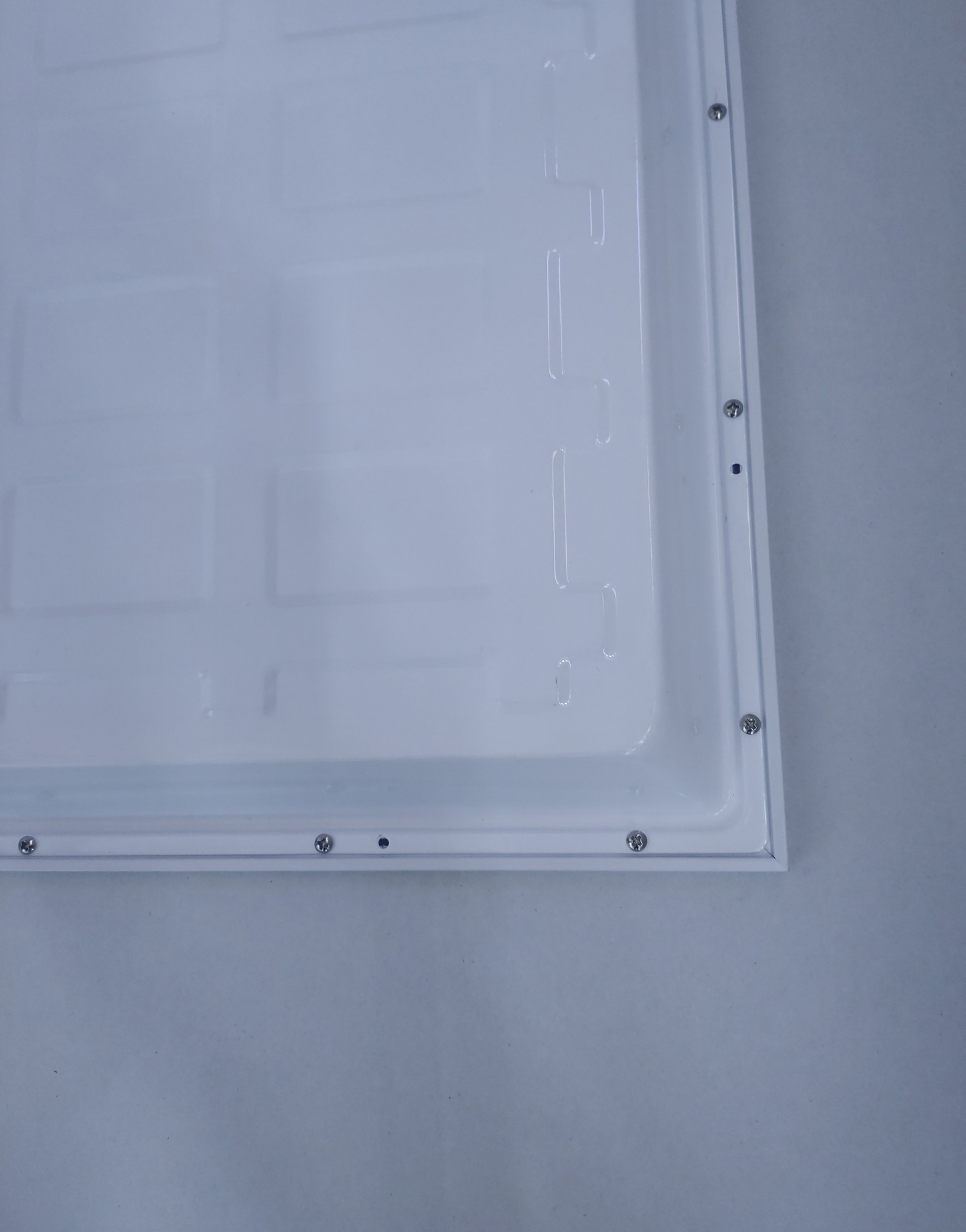

                                                                   LED BACKLIT PANEL


Characteristic:

1.Lightness design,easy to install.Body high quality steel.

Dealed with phosphide then powder coating.The panel made of superior quality light guide plate.

It will carates better and more comfortable light environment.

2.Light source:LED

3.Driving Power:Diming/Standard(built-in type constant current power supply)

4.Voltage:AC185-265V,50/60Hz

5.Working life:50,000h

6.Application:Office,Library,school,hospital,supermarket,hotel,shopping mall,and also suit for home lighting.


ITEM NO.POWERITEM SIZEOutput LumensColor TemperatureCRI
YLA428P-N
60W
1195*595*32mm
5400lumens
3000-6500K
≥80
YLA228P-N
40W
1195*295*32mm
3600lumens
3000-6500K
≥80
YLA414P-N
40W
595*595*32mm
3600lumens
3000-6500K
≥80
YLA214P-N
24W
595*295*32mm
2160lumens
3000-6500K
≥80
