DC Brushless permanent magnet solar swimming pool pump

TAIFU is one of the earliest and biggest solar pump manufacturer in China

Solar water pumps are especially used for the area without state grid but rich in sunshine, also, it can be used for irrigation, fountains, ponds, water transferring and so on. It’s solar powered, energy saving and environment protecting.

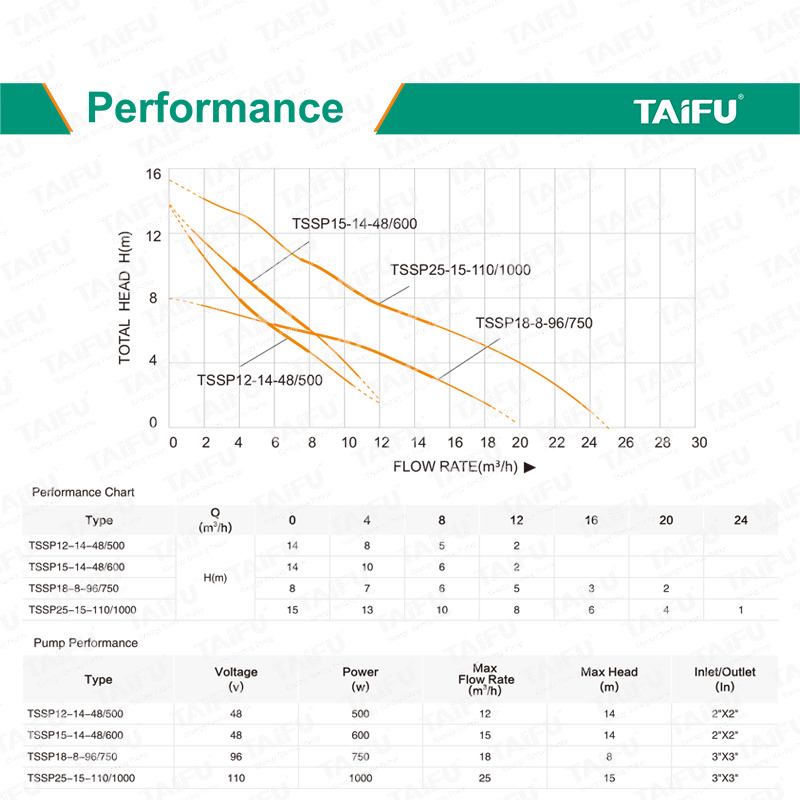

Pump performance range:

1：Power: 80~3000W

2：Voltage: 12~300V

3：Head: 11~300m

4：Flow rate: 0.5~61m³/h

5：Borehole size: 3’’, 4’’, 5’’

Material:

1：100% copper wire

2：#304 stainless steel shaft，#316 stainless steel screw

3：NSK bearing imported from Japan

Advantages:

1：3-phase brushless permanent magnetism DC motor, the motor efficiency is 25% higher than AC motor. The motor starts up placidly and the current is far less than traditional hardware start up technology

2：Advanced and smart controller with MPPT（max power point tracking）and DSP technique

3：The MCU can detect the circuit automatically and can be displayed by LED

4：Over load protection function

5：Battery function is available for 12/24/36/48V controller

6：Installation is simple and convenient, free maintenance

7：100% testing system for motor/complete set pump/controller

8：CE certificate

Guarantee:

1：3 years warranty with technology support

2：Annual visit to solar pump agent to give technical training
