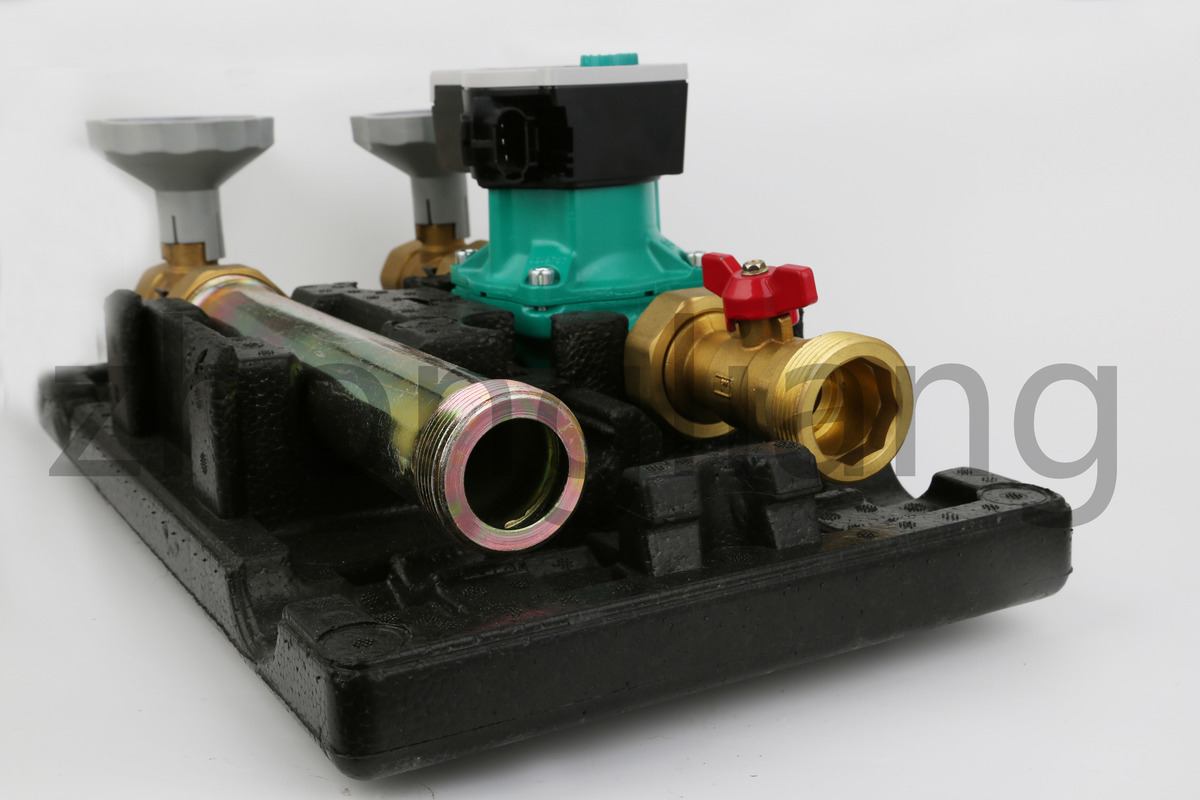

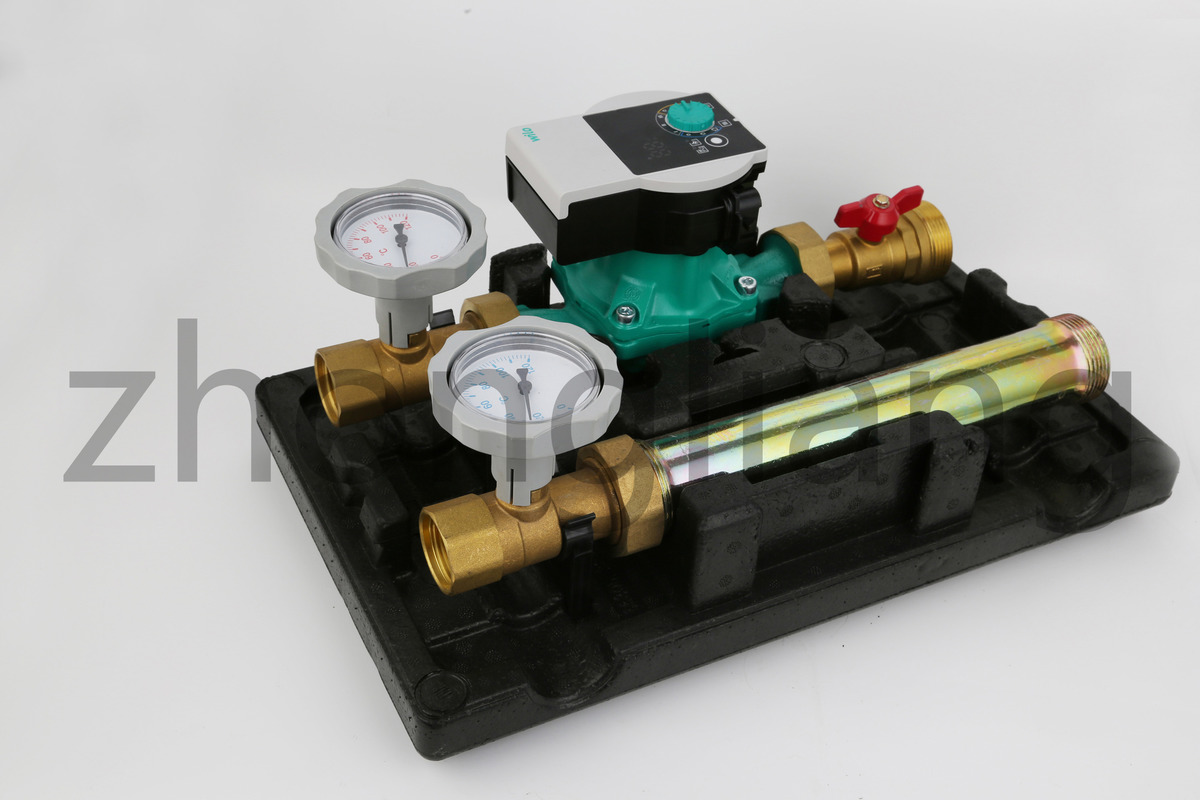

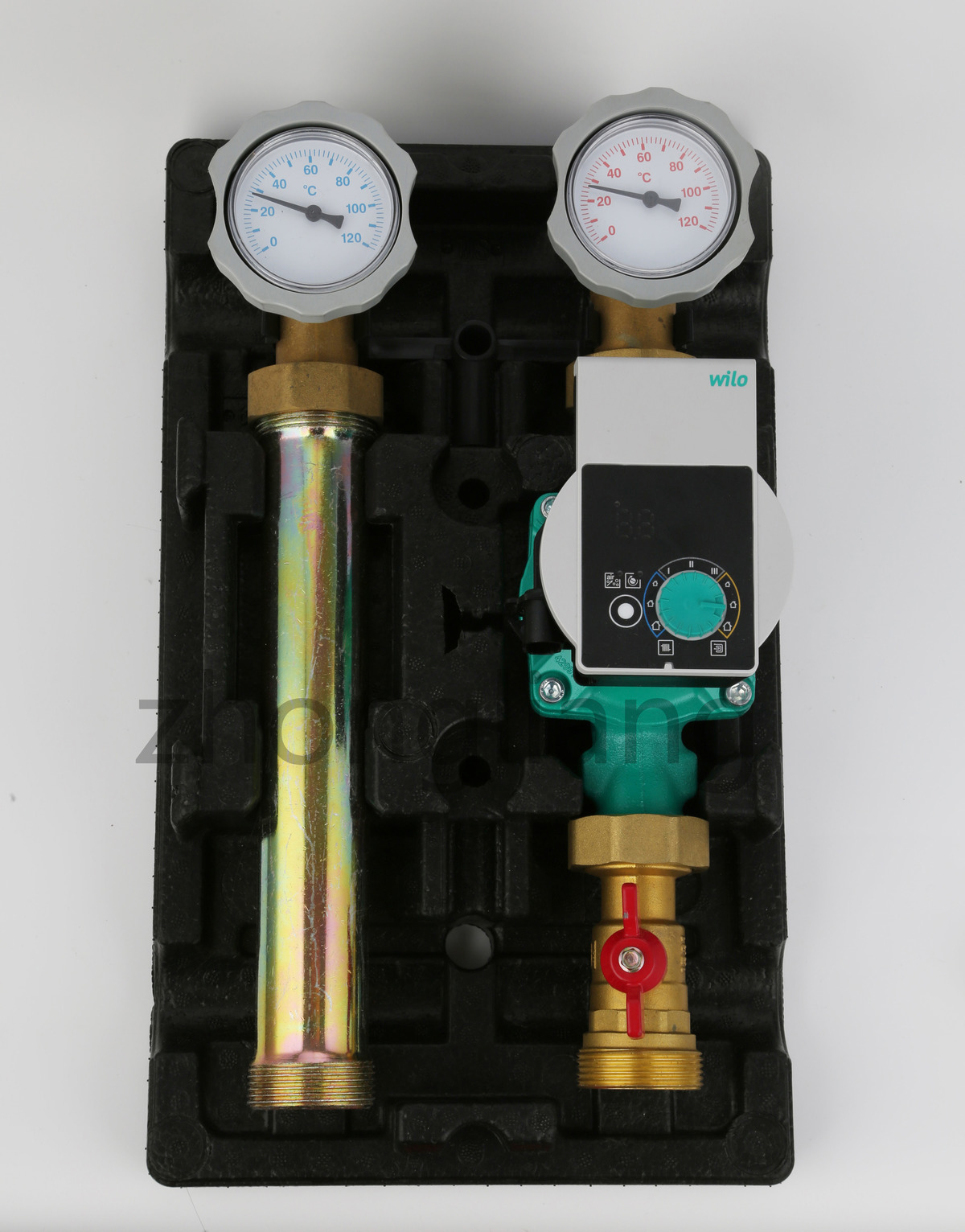

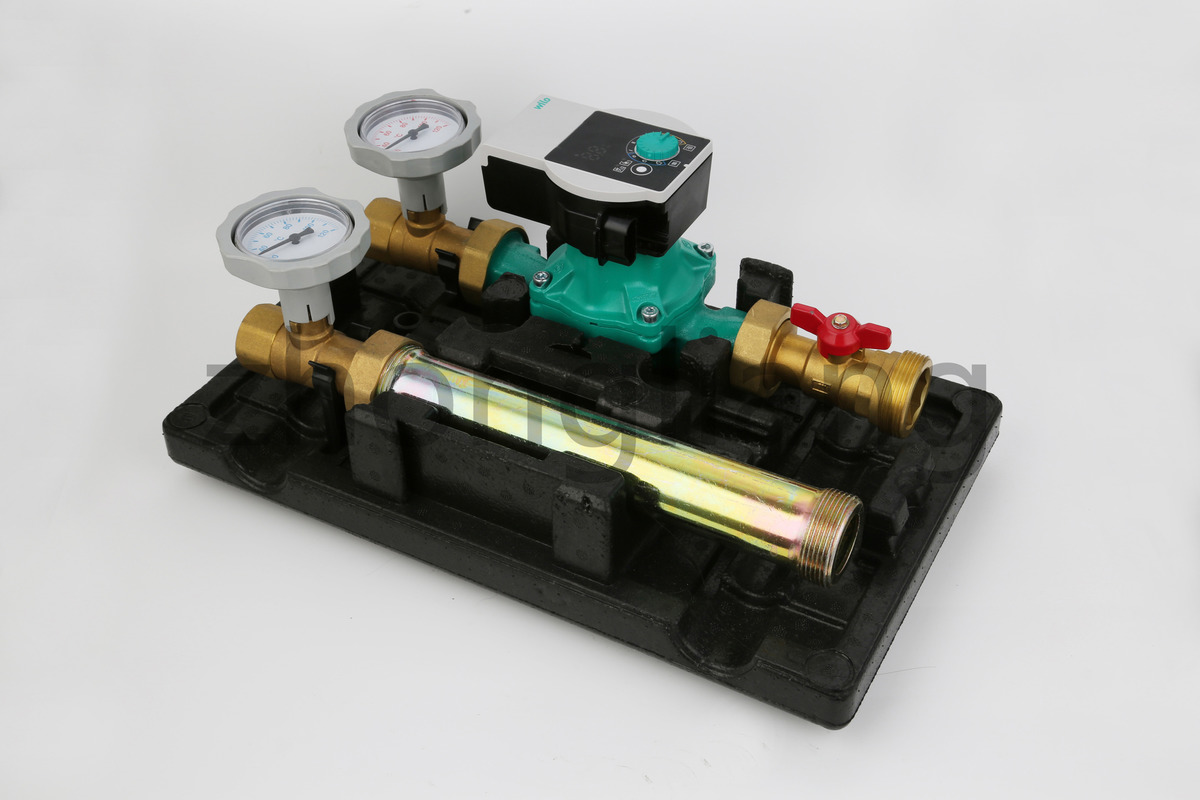

Underfloor Heating mixting system PUMP GROUP

Mixing system used for heating system, the function is a part of return water with lower temperature after floor heating and heating dissipation is pumped to the water inlet channel for secondary utilization ,mixed with the water inlet ,reducing the water temperature entering the floor heating system after mixing , and increasing the circulation of the floor heating pipeline.

You can choose the configuration according to your own requirements.

Technology data:

Nominal diameter:DN25

Upper nozzle G1”:Female Thread

Lower nozzle G1-1 1/2’:Male Thread (Flat seal)

Nozzle spacing:125mm

Maximum working temperature:110℃

Working pressure:PN6

Pump installation length:180mm

Thermometer range:0-120℃

Kvs:9.7m³/h(Direct circulation pump set)

Kvs:6.5h(Mixed water circulation pump set)
