2.0/2.5Ton Electric Pallet Truck

Min. Order: 1 UNIT

Product Parameters

Serial No. : HEPT20/HEPT25

Size（mm）：1710*540*970MM

Material:steel,iron, rubber, plastic and etc.

Place of origin:Zhejiang China

Color:Orange

Schedule an Appointment

Support level: A

LIBEI VILLAGE,LUQIAO DISTRICT,TAIZHOU CITY,ZHEJIANG PROVINCE

Registered capital:5056

Founded:2005

Number of companies:101-500人

Export scale:

Contact: 施**

E-Mail：Sign In

The detailed information

DESCRIPTION: 2.0-2.5TON ELECTRIC PALLET TRUCK

FEATURE: Safe/Flexible/Strong/Reliable

MODEL: HEPT20/HEPT25

HS CODE: 8427109000

1	Model型号		HEPT20/25
2	Load capacity 额定载荷	kg	2000/2500
3	Service weight(with battery) 带电瓶自重	kg	640
4	Min. Lowered fork height 最小离地间隙	mm	85
5	Overall length with forks 总长	mm	1710
6	Overall forks width 总宽	mm	540/600/685
7	Fork length×width×height 货叉长×宽×高	mm	1150×185×55
8	Max.ground clearance 货叉最大离地高度	mm	205
9	Aisle width for pallet 1000×1200 crossways 直角通道宽度，托盘1000×1200	mm	1900
10	Aisle width for pallet 800×1200 lengthways 直角通道长度，托盘800×1200	mm	2100
11	Turning radius 转弯半径	mm	1700
12	Travel speed(laden/unladen) 行驶速度（承载/空载）	km/h	6/6
13	Maximum gradeability(laden/unladen) 最大爬坡度（承载/空载）	%	5/7
14	Battery voltage/capacity 电瓶电压/容量	v/AH	24/210

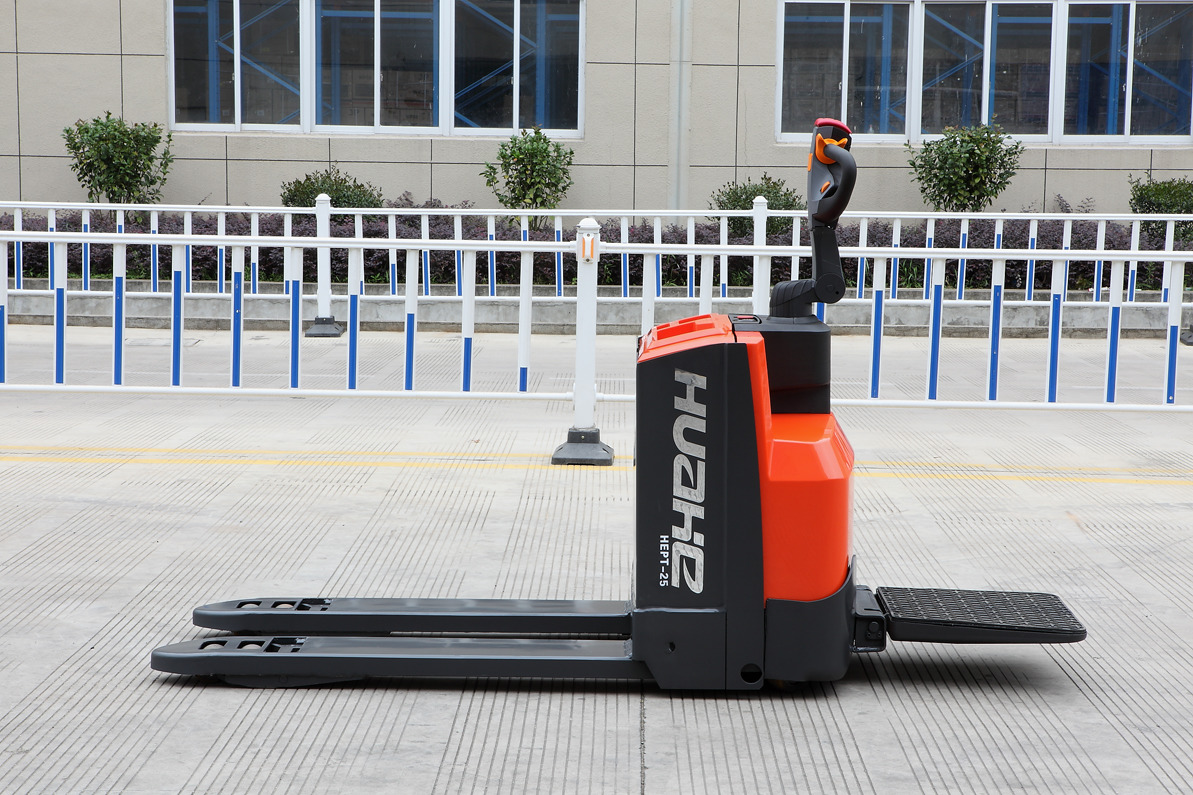

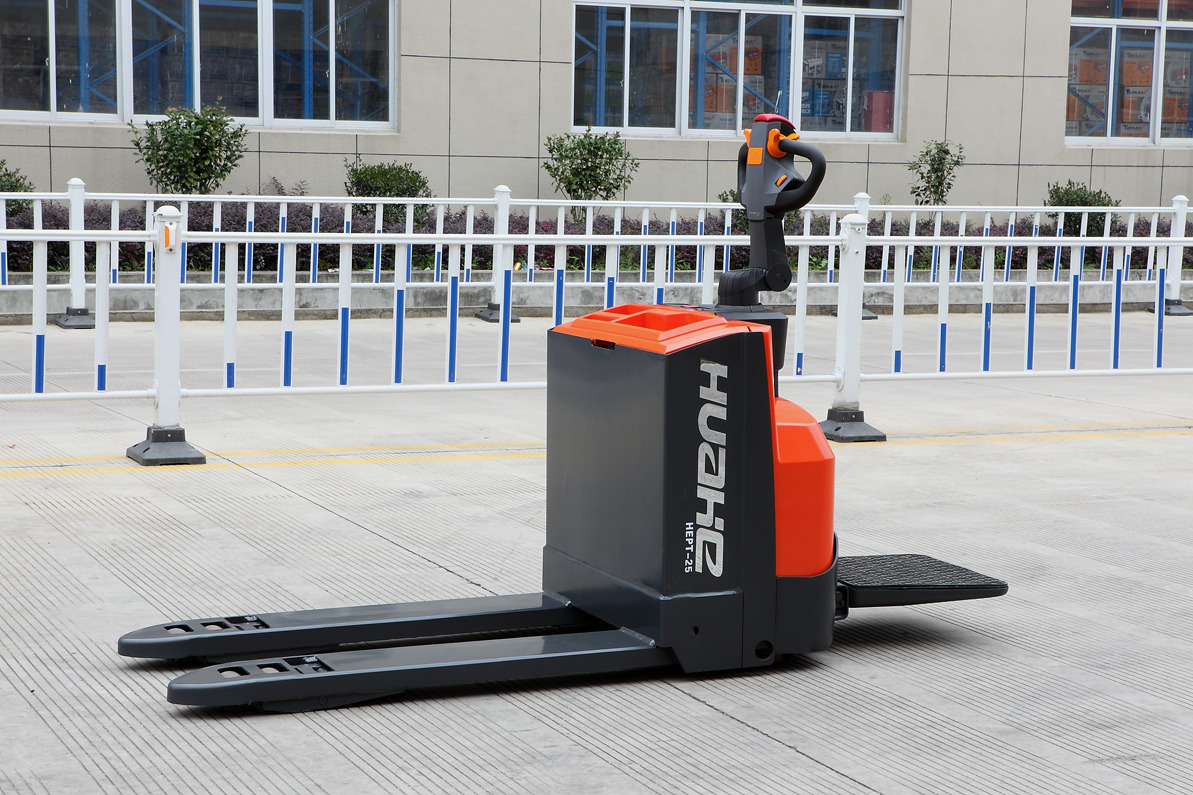

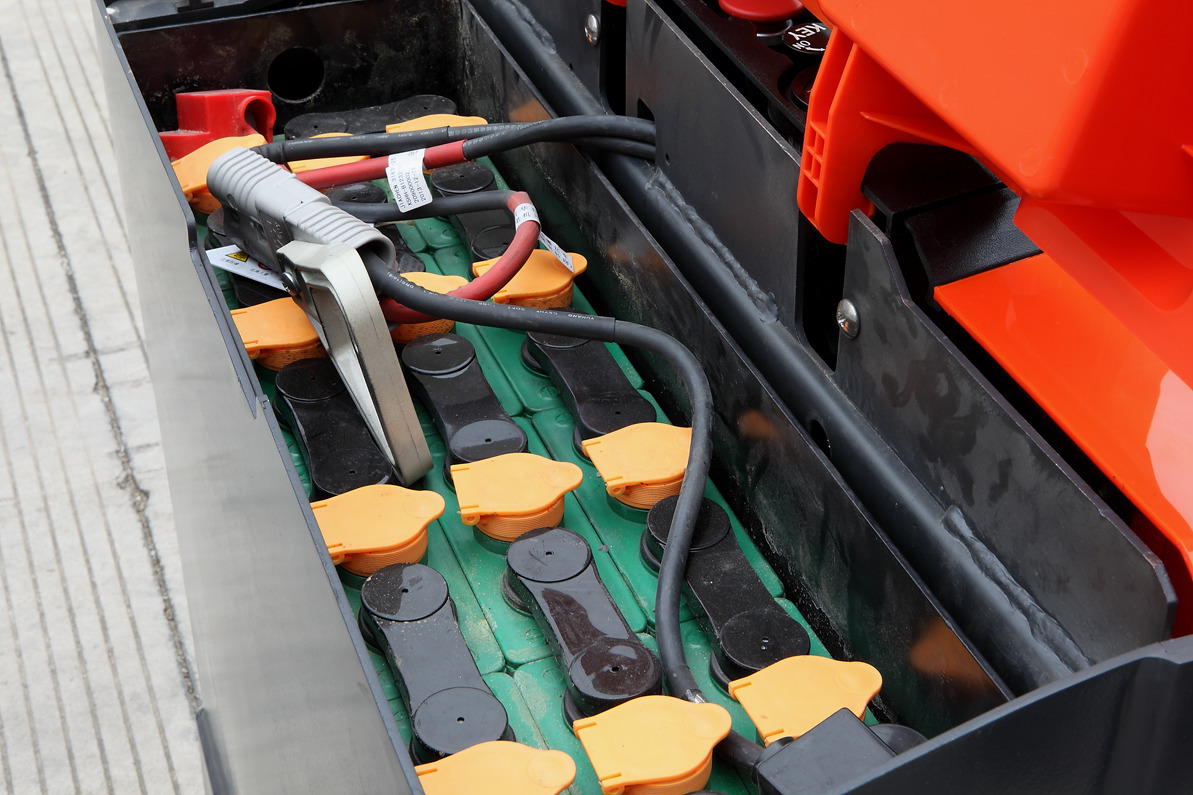

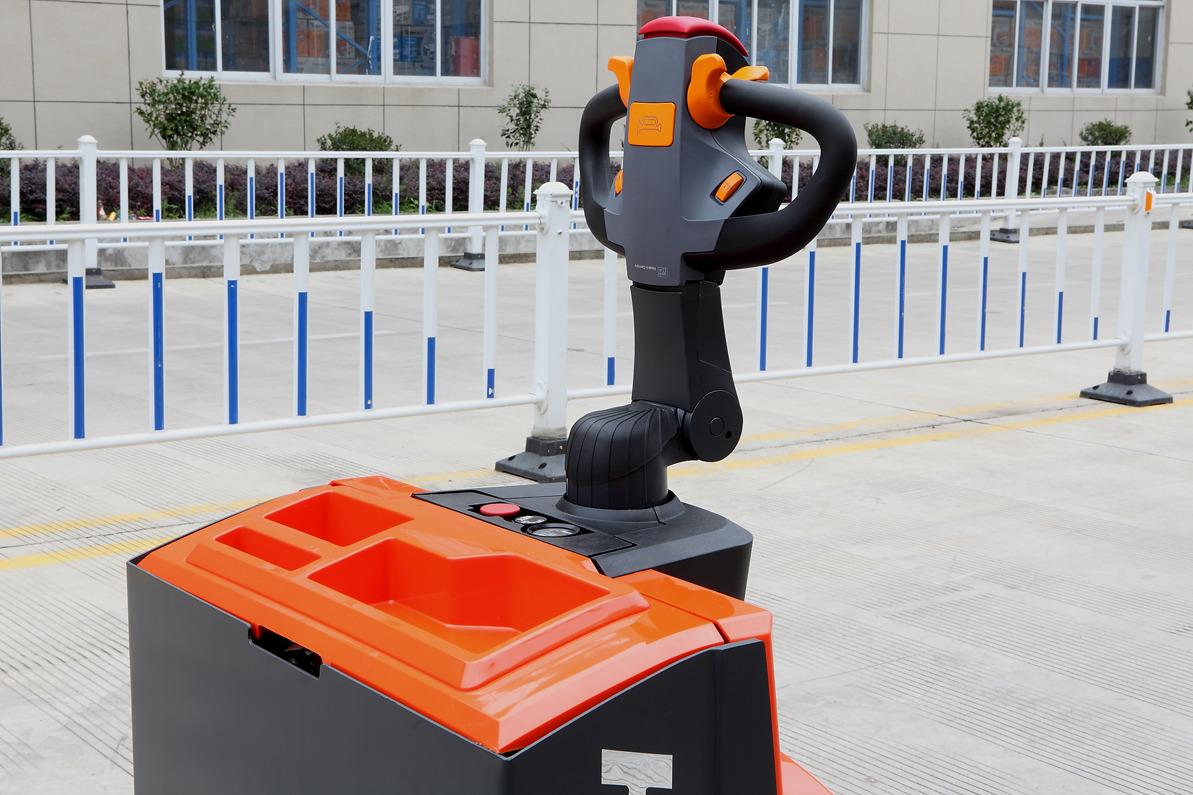

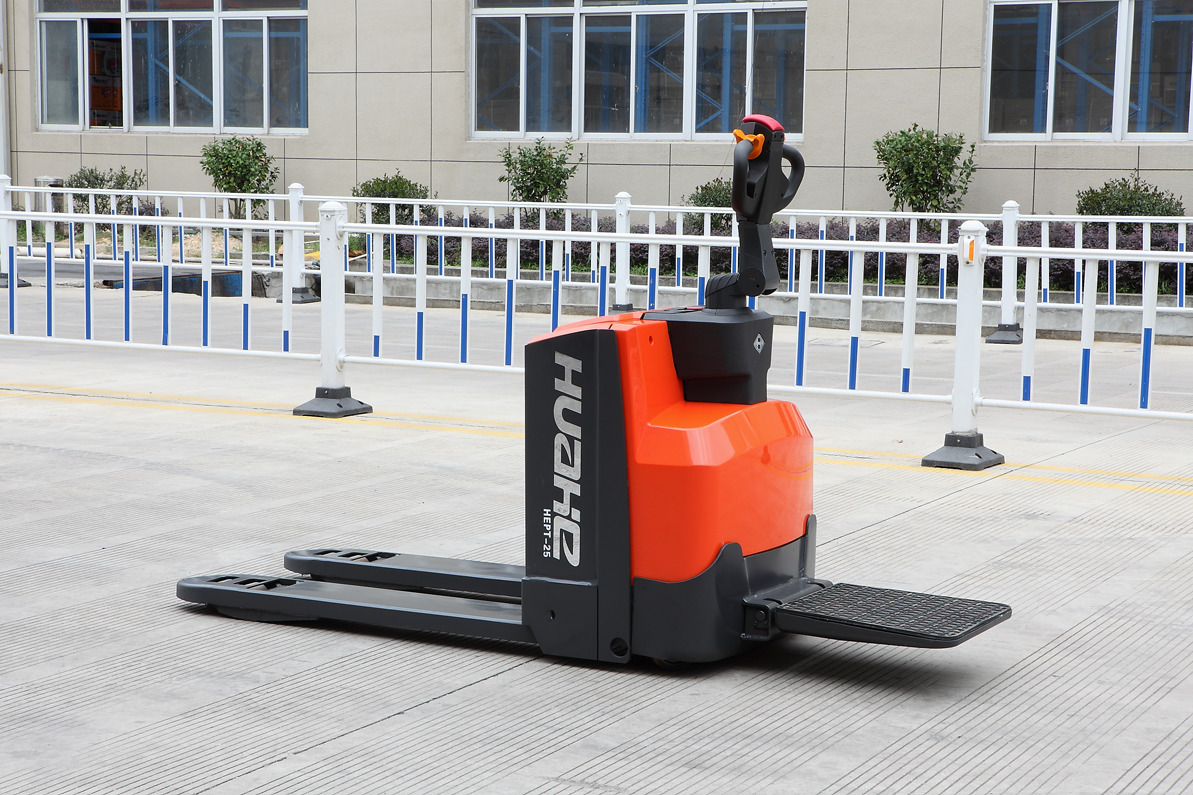

Product exhibition plan
