Push-fit FIP flexible supply lines

Min. Order: 0

Product Parameters

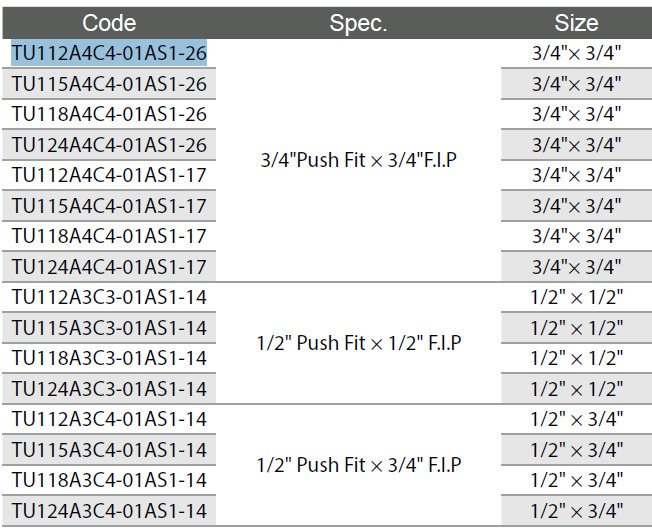

Serial No. : TU112A4C4-01AS1-26

Size（mm）：1/2",3/4"

Material:brass

Color:Chrome Plated

Schedule an Appointment

Support level: A

SCIENCE & TECHNOLOGY INDUSTRIAL ,QINGGANG ,YUHUAN,ZHEJIANG,CHINA.

Registered capital:5000

Founded:1996

Number of companies:101-500人

Export scale:

Contact: 胡**

E-Mail：Sign In

The detailed information

Size:

Technical Specification

• Fast installation solution

• No glue, no soldering, no tooling

• 2 step installation: cut and push

• Max working temperature: 200°F (90℃ )

• Max working pressure: 150psi (10bar)

• Max resistant pressure: 350psi (25bar)

• Max endured pressure: 600psi (40bar)

• Certified for potable water and hydronics

• Suitable for different kinds of piping system: copper, carbon, PEX, PEX-AL-PEX, brass, PVC, CPVC

Certification:

CUPC, NSF/ANSI61 NSF/ANSI372 NSF/ANSI14

Products are in compliance with the following standard(s):

• ASME A112.18.6-2017/CSA B125.6-17

• NSF/ANSI 14-2010a

Product exhibition plan
