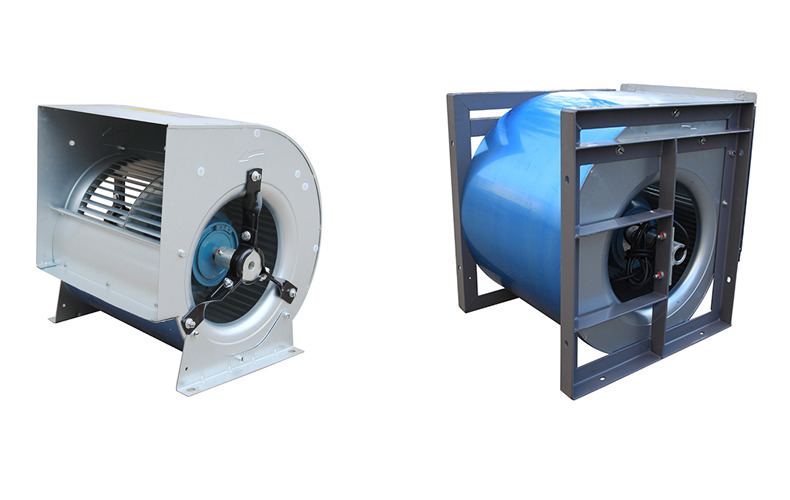

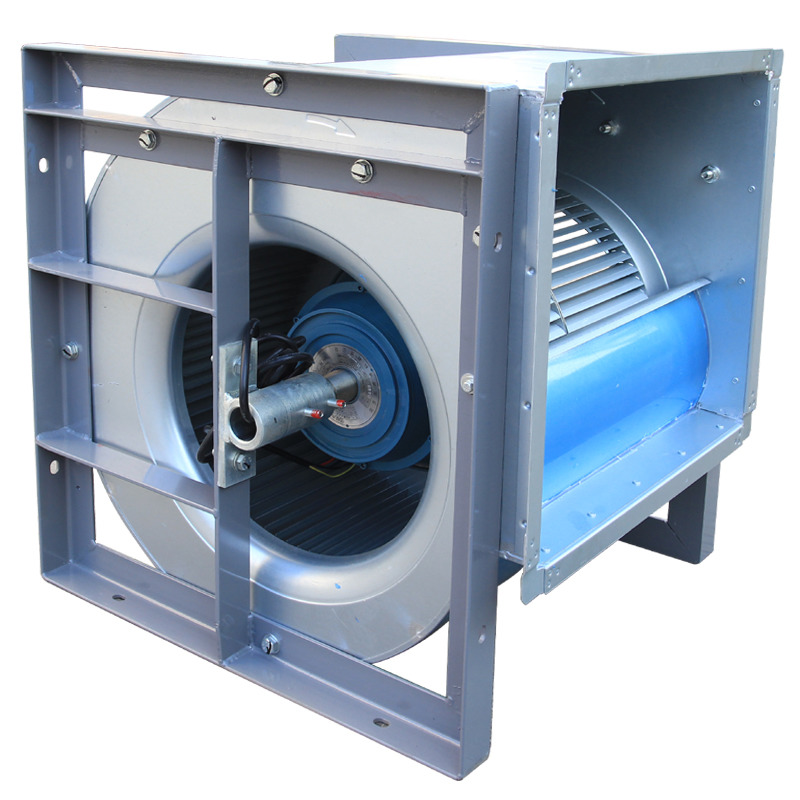

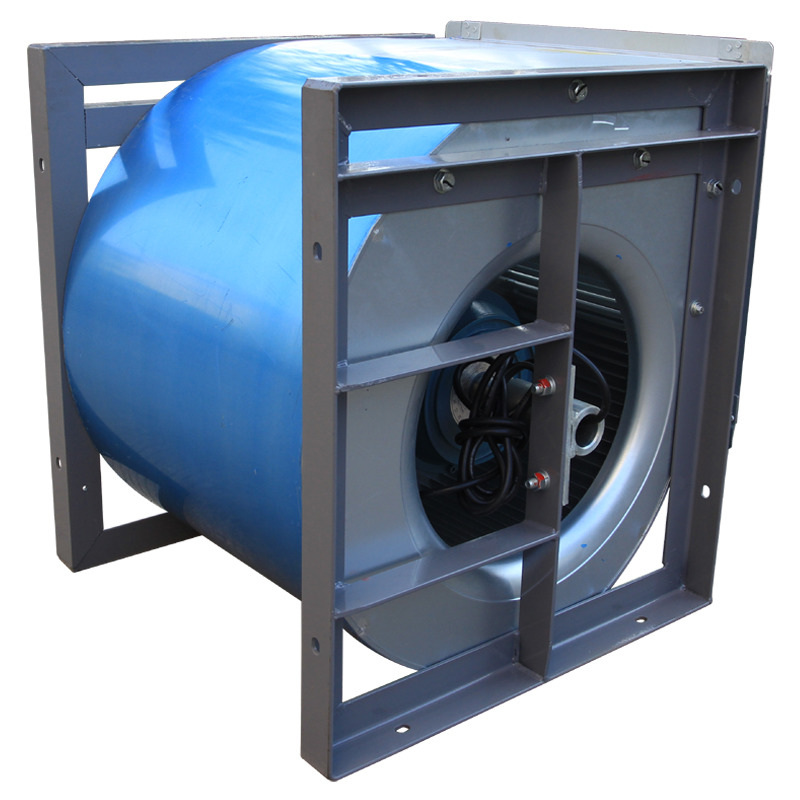

LKB Forward Curved Multi-blades Centrifugal Fan

LKB Forward Curved Multi-blades Centrifugal Fan

Description:

LKB series of forward curved multi-blades centrifugal fans are low noise and compact structure fans which are developed with advanced technology,

 adopting external rotor motor direct drive. The fans are characterized by high efficiency,

low noise, large air flow, small size, compact structure. They are ideal subsidiary equipment for cabinet air-conditioning units,

variable air volume(VAV) air conditioner, and other heating, air- conditioning, purification, ventilating equipment.

Specification:

Impeller Diameter:             200 ~500mm.

Air Volume Range:            100O~20000m3/h.

Total Pressure Range:       200~850Pa

Sound Range:                   60~84 dB(A).

Drive Type:                        External rotor motor direct drive.

Model:                               200, 225, 250, 280, 315, 355,400, 450, 500.

Applications:                     Ideal subsidiary equipment for cabinet air-conditioning.units, variable air volume(VAV) air conditioner,

                                         and other heating, air-conditioning, purification equipment
