TIGACDC315GD TIG WELDING MACHINE

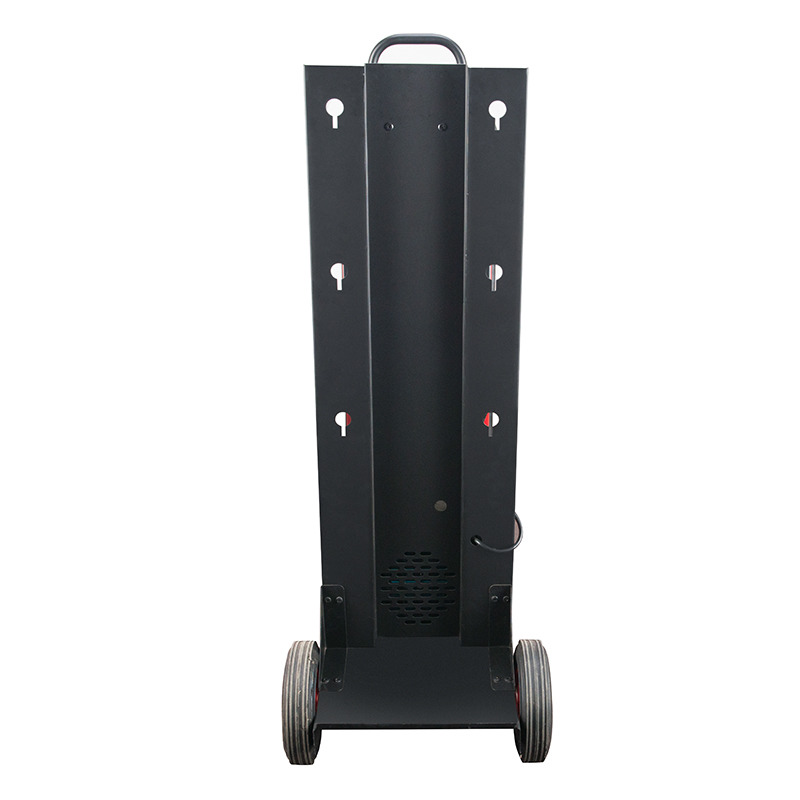

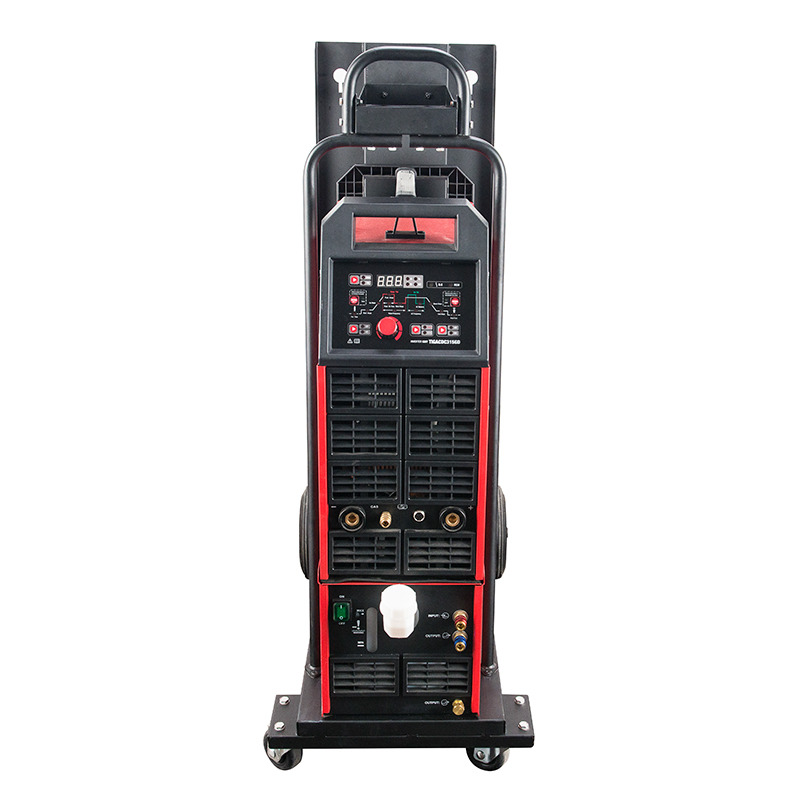

TIGACDC315GD + water cooler + welding cart

Introduction: working voltage three-phase 380V, IGBT inverter, output current range 5-315A, output current 315A temporary load rate 50%; TIG has 2T / 4T, pulse welding, AC / DC, slow rise / fall, foot switch Remote control and other functions, suitable for φ1.6 ~ 3.2mm tungsten needle, AC welding thickness 1-6.5mm, DC welding thickness 0.5-9mm, can weld non-ferrous metals such as aluminum, magnesium and aluminum alloy; MMA is suitable for welding rod φ1.6-5.0 mm (acid electrode, alkaline electrode), welding thickness 1.5-12mm, can weld carbon steel, stainless steel and other metals; suitable for hardware, decoration, aluminum products processing and maintenance operations, equipped with independent water tank and cart.

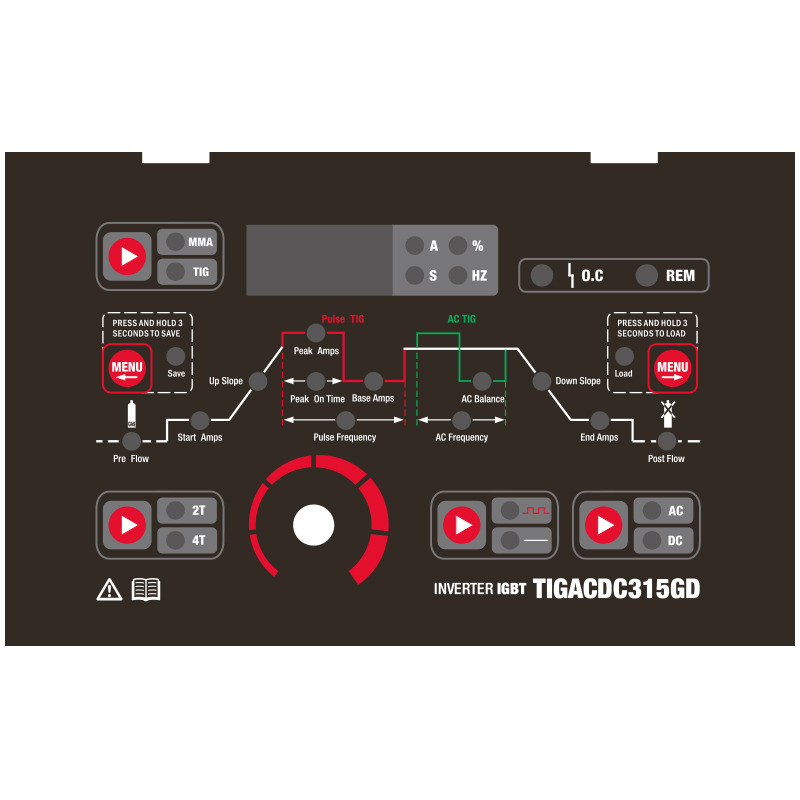

Advantages: easy to use with trolley and water tank, suitable for long-term welding with high current, digital panel design, high-end grade, precise parameter adjustment; TIG / MMA dual-use, high cost performance, high-frequency arc starting for argon arc welding, easy to start , DC minimum welding current can be as low as 5A, very suitable for thin plate welding, AC frequency and pulse frequency up to 200HZ; foot switch connected to the welding machine, automatically detected and converted into remote control mode, easy to operate; manual welding built-in heat Arc starting and arc starting are easy, the arc is soft, and the spatter is small; there are overcurrent and overheat protection functions to ensure the safety and reliability of the welding machine.

Accessories:TIG torch,ground clamp,electrode holder,gas hose,mask,hammer brush
