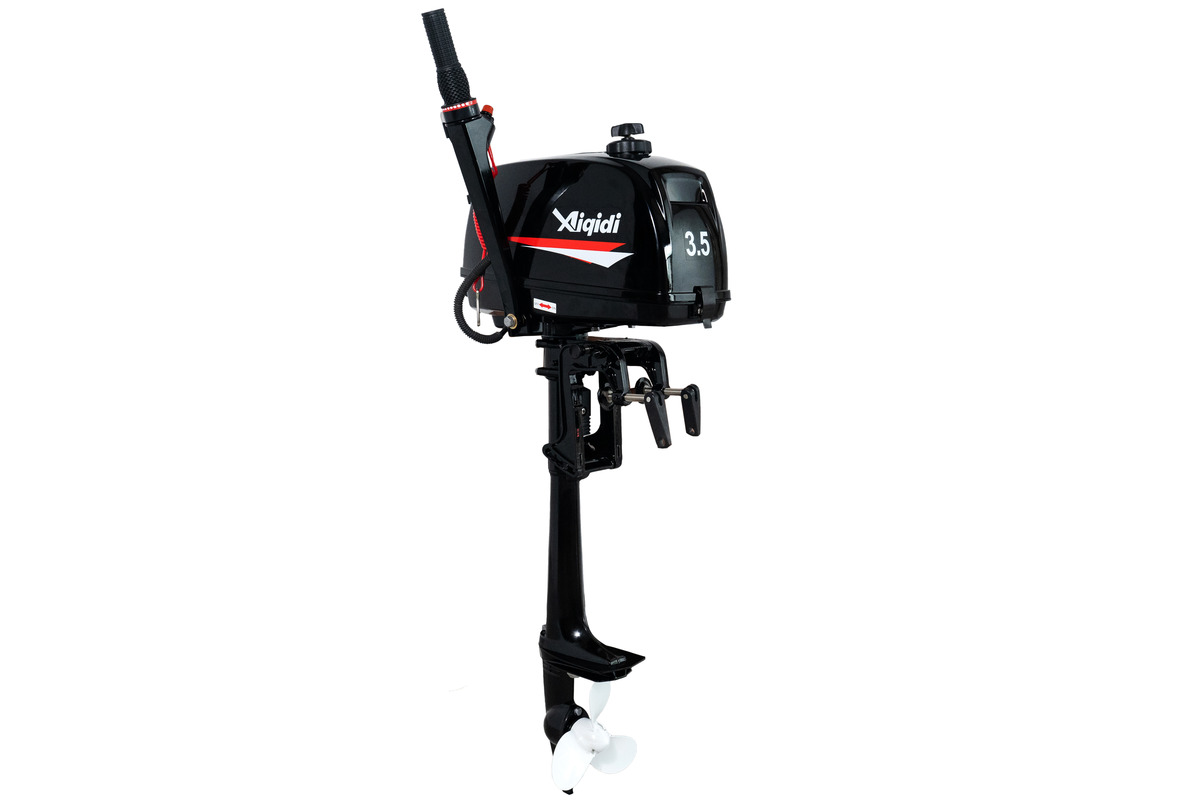

OUTBOARD MOTOR

Min. Order: 1 UNIT

Product Parameters

Serial No. : T2.5/T3.5

Size（mm）：950*410*275

Material:aluminium parts

Place of origin:Zhejiang China

Color:black color

Add to Favorites

Schedule an Appointment

Zhejiang anqidi power machinery co.,ltd

Support level: A

TENGDA ROAD,LUQIAO DISTRICT,TAIZHOU CITY,ZHEJIANG,CHINA

Registered capital:500

Founded:2006

Number of companies:51-100人

Export scale:

Contact: 何**

E-Mail：Sign In

Tel:Sign In

The detailed information

Product Description

Product model	T3.5
Products model	T3.5
Engine type	2 Stroke
r/min Idle speed r/min(Neutral position)	1100-1200
Displacement (cm³）	61cm³
Bore ×Stroke(mm)	45.0×38.0
Max.Power Output(KW/r/min)	1.8(3.5)@5000
Gear ratio	2.08(27/13)
Transom Height(mm)	417mm
Fuel tank(L)	1.3L
Propeller Size(in)	3-7 1/4×5
Net Weight(kgs)	10kgs
Packing size(cm)	93×43×25.5

Product model	T2.5
Products model	T2.5
Engine type	2 Stroke
r/min Idle speed r/min(Neutral position)	1100-1200
Displacement (cm³）	61cm³
Bore ×Stroke(mm)	45.0×38.0
Max.Power Output(KW/r/min)	1.5(2.5)@5000
Gear ratio	2.08(27/13)
Transom Height(mm)	417mm
Fuel tank(L)	1.3L
Propeller Size(in)	3-7 1/4×5
Net Weight(kgs)	10kgs
Packing size(cm)	93×43×25.5

Technical Parameters And Specifications

Dimension:

Overall length:610mm(24inch)

Overall width:240mm(9.4inch)

Overall height :916mm(36.1inch)

Transom height:417mm(16.4inch)

Performance:

Full throttle operating range:4500-5000 r/min

Maximum output:2.5KW@4500r/min

T3.5 3.5hp@4500r/min

Idling Speed:1150±50r/min

Engine:

Type:2 stroke S

Displacement:60.4 cm³

Bore x Stroke:45.0x38.0mm

Ignition system:CDI

Spark plug:E5RTC

Spark plug gap:0.6-0.7mm(0.024-0.028inch)

Control system:Tiller

Starting system:Manual

Starting carburetor system:Choke valve

Drive Unit:

Gear positions:Forward

Gear ratio:2.08(27/13)

Trim and tilt system:Manual tilt

Propeller mark:A

Fuel and oil:

Recommended fuel:Regular unleaded gasoline

Fuel tank capacity:1.3L

Recommended engine oil:2 stroke outboard motor oil

Fuel and oil ratio:

Regular gasoline:50:1

Lubrication :Pre-mixed fuel and oil

Recommended gear oil:Hypoid gear oil SAE#90

Gear oil quantity:0.045L(0.048 US qt,0.040Imp.qt)

Tightening torque for engine:

Spark plug:2.5Nm(2.55kgf-m,18.4ft-lb)

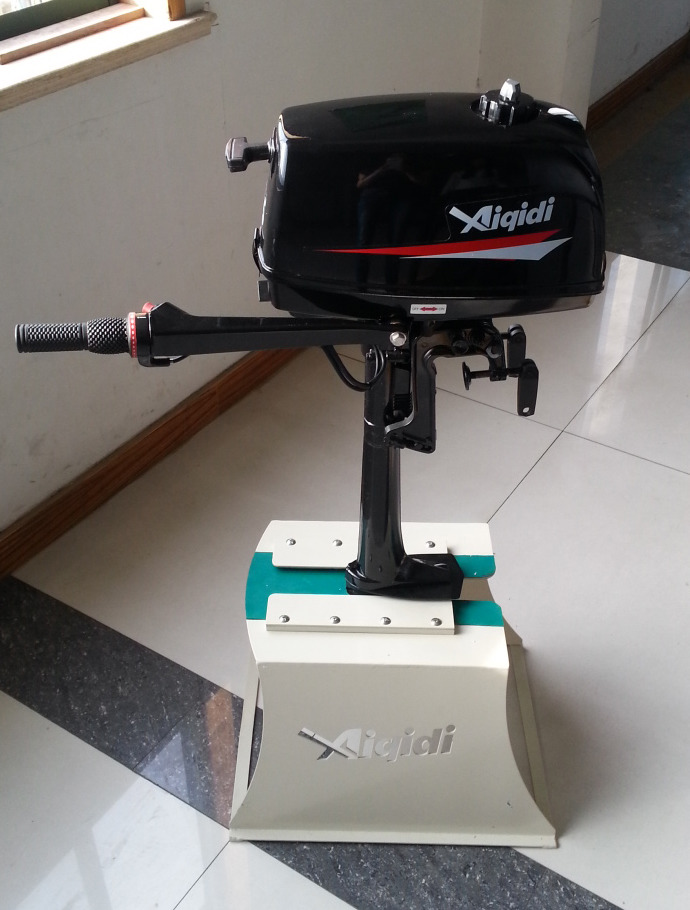

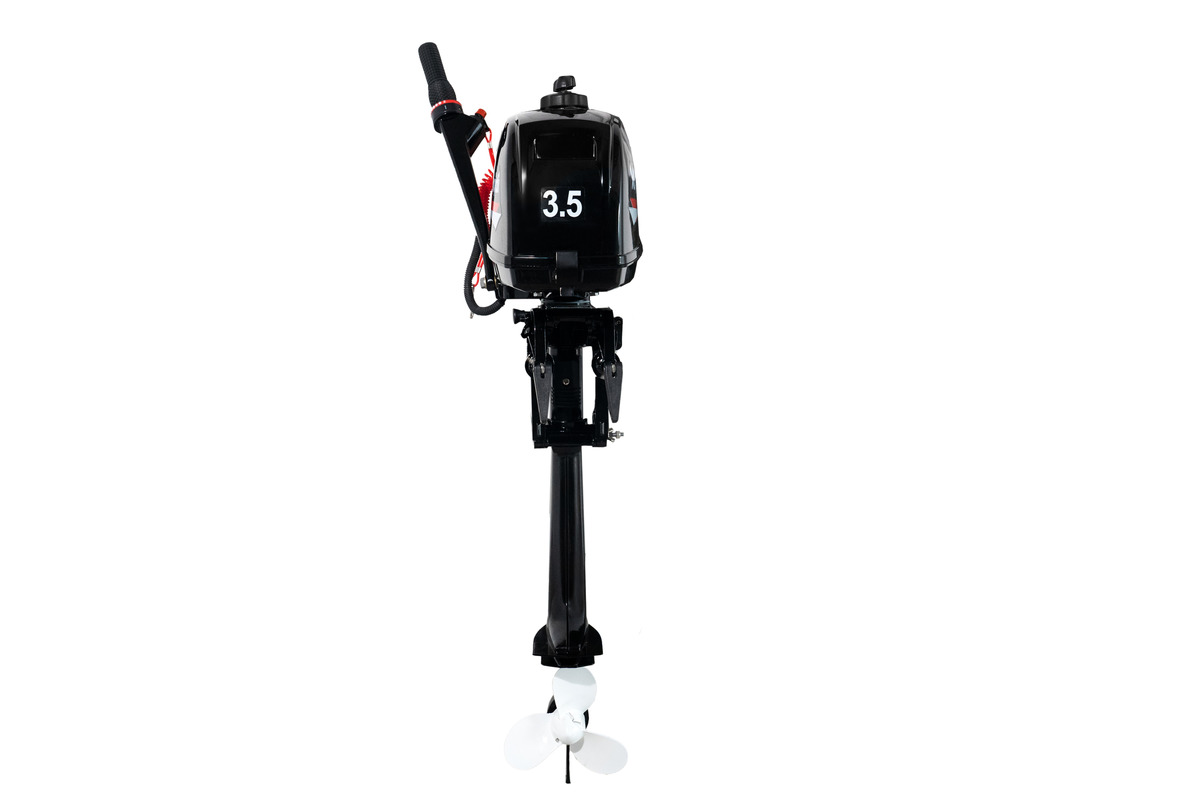

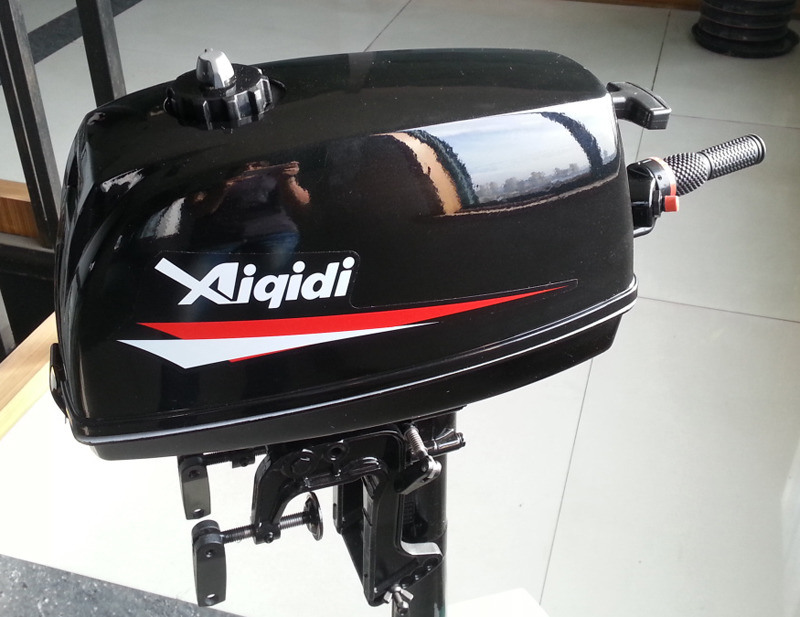

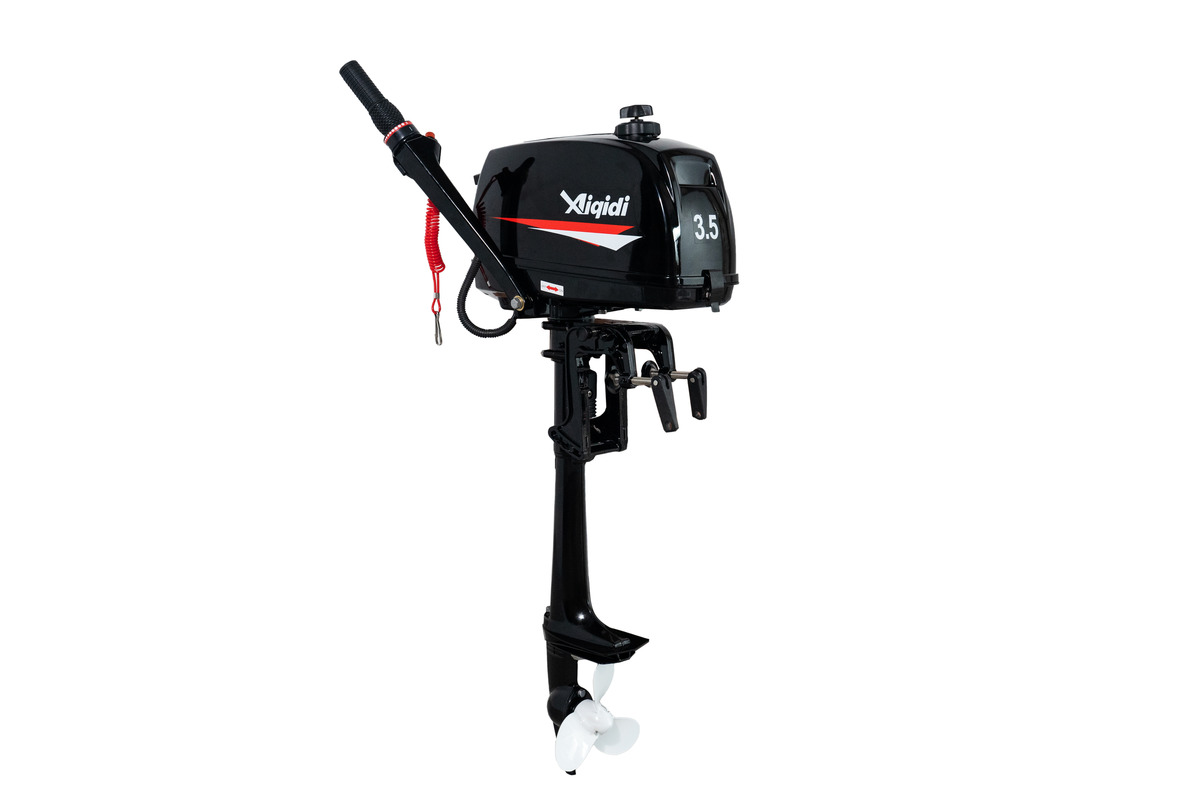

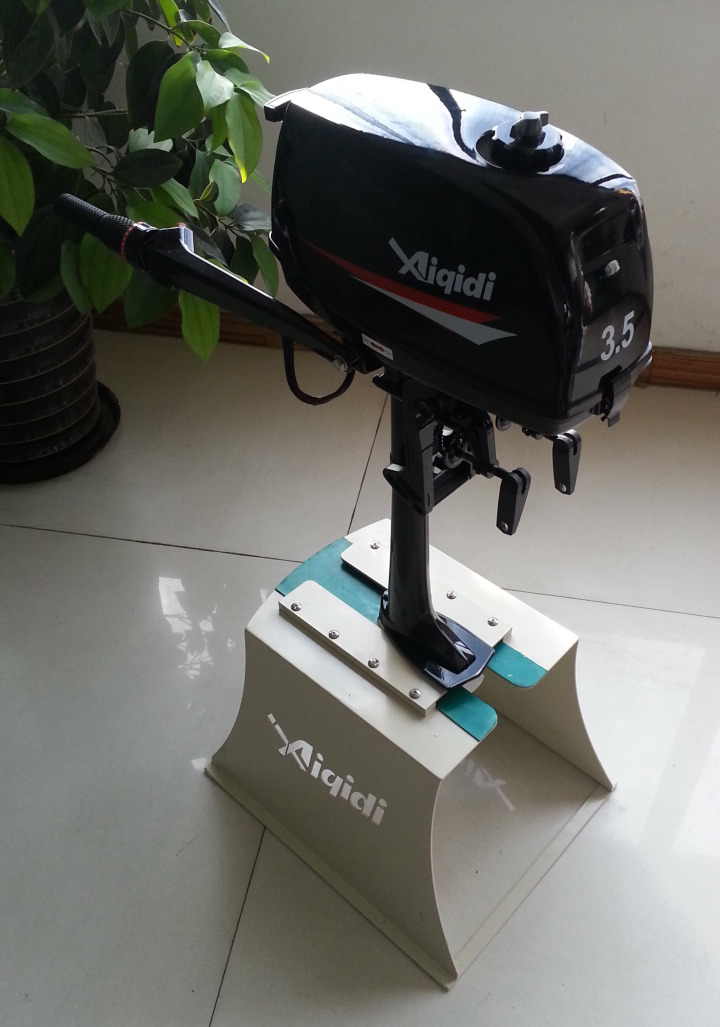

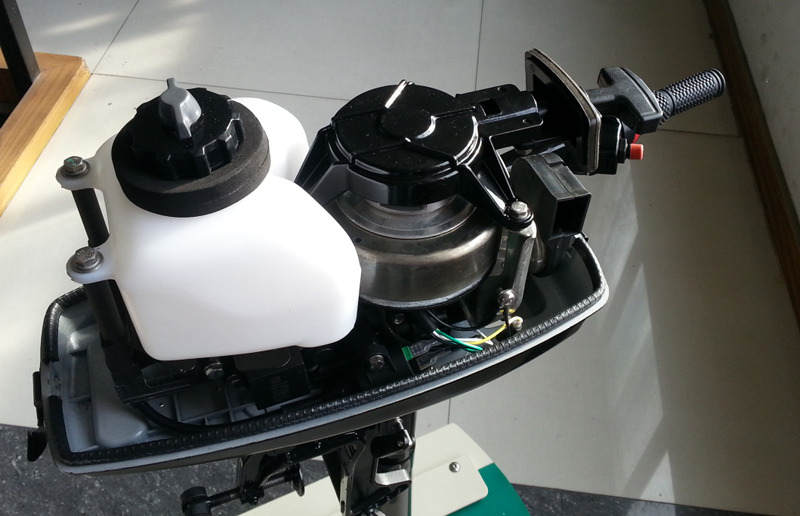

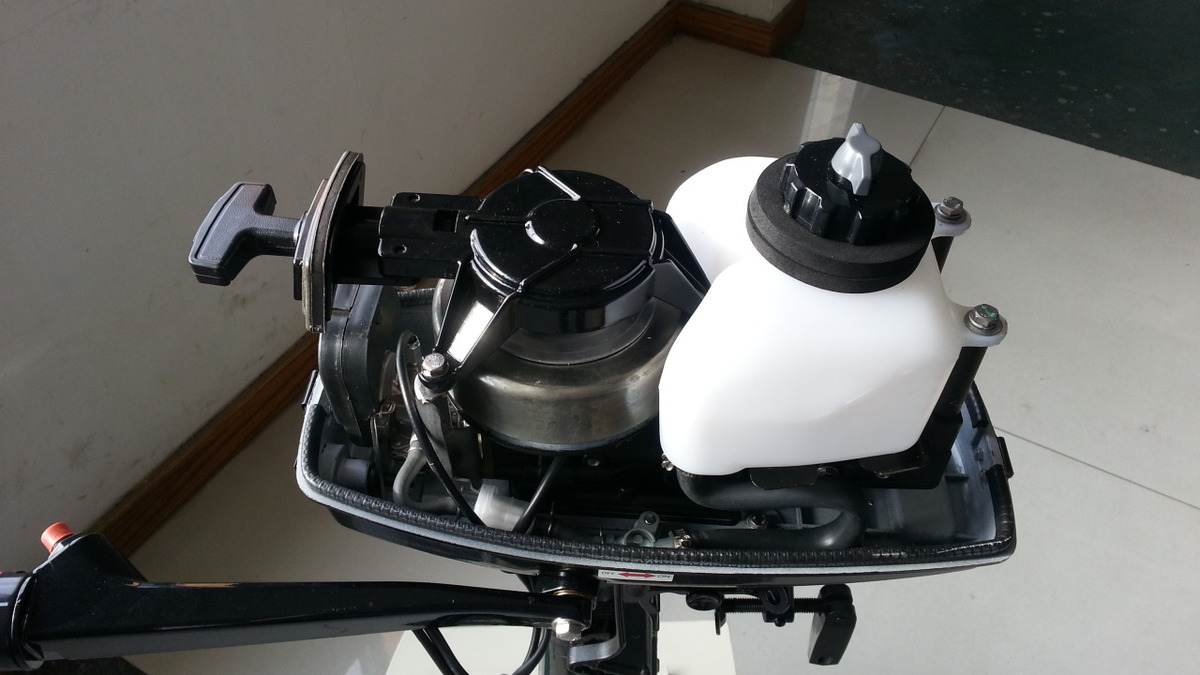

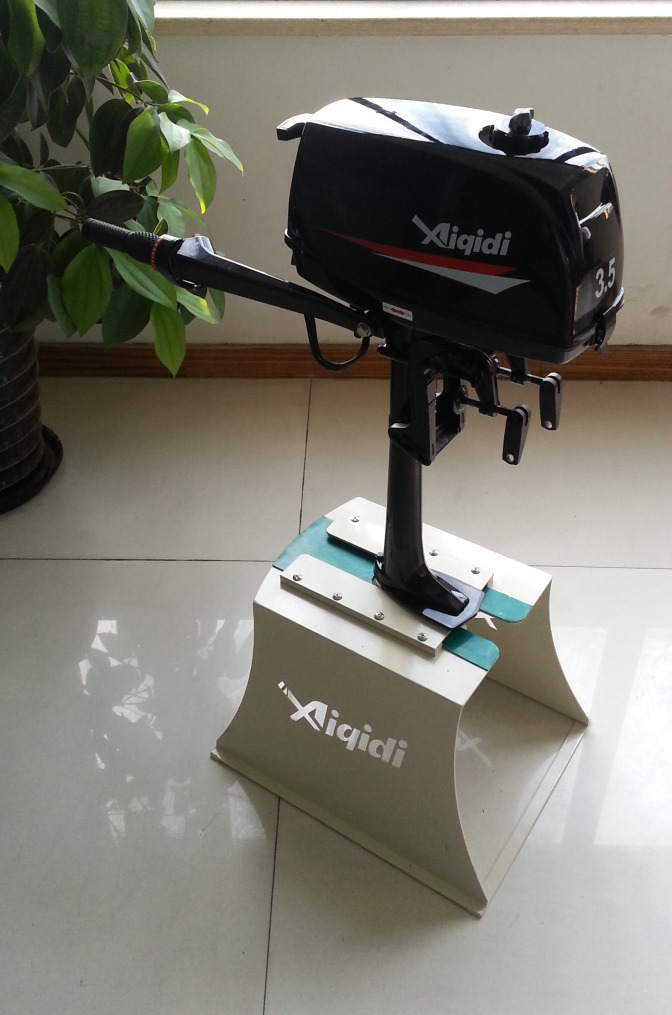

Product exhibition plan
