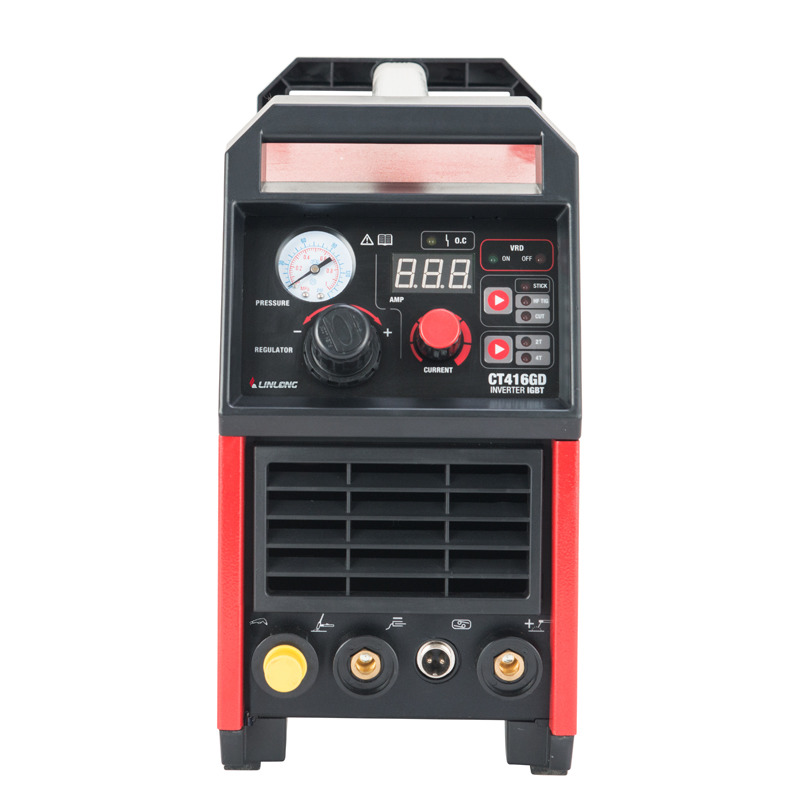

CT416GD Multifunction cutting machine

Introduction: Working voltage 230V, IGBT inverter, output current range 15-150A (TIG), 30-150A (MMA), 20-38A (CUT), the maximum current output temporary load rate of 30%; CUT applies electrode nozzle φ0. 8 / 1.0 mm, working pressure 43.5-50.7 psi, maximum cutting thickness 12mm, can cut various metals such as stainless steel, aluminum, copper, cast iron, carbon steel; TIG is suitable for φ1.6 ~ 2.4mm tungsten needle, welding thickness 0.5-4mm , Can weld carbon steel, stainless steel and other metals; MMA suitable electrode φ1.6-3.2mm (acid electrode, alkaline electrode), welding thickness 1.5-5mm, can weld carbon steel, stainless steel and other metals; suitable for hardware, decoration , Car modification, equipment maintenance and other home DIY operations.

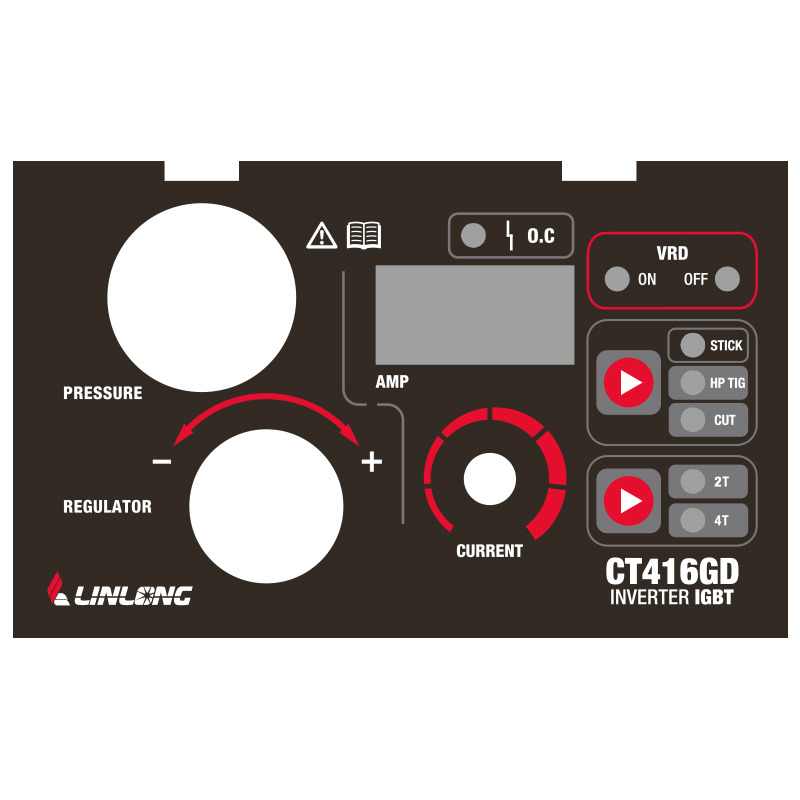

Advantages: novel appearance, small size, light weight, easy to carry; digital panel design, high-end grade, accurate parameter adjustment; CUT / TIG / MMA three-purpose, high cost performance, cutting machine and argon arc welding use high frequency arc starting, Easy arc starting, pressure regulator and air pressure gauge are installed on the front panel, beautiful and easy to operate; manual welding built-in thermal arc, thrust, soft arc, small splash, VRD anti-shock protection function, pay more attention to personal safety; 2T / 4T It is designed to reduce labor intensity and is very practical; it has overcurrent and overheat protection functions to ensure the safety and reliability of the welding machine.

Accessories:Cutting torch,TIG torch,electrode holder,ground clamp,gas hose,mask,hammer brush
