Serial No. : F60
Size（mm）：1610*520*900
Material:Aluminum products
Place of origin:Zhejiang China
Color:black color
Support level: A
Registered capital:500
Founded:2006
Number of companies:51-100人
Export scale:
Contact: 何**
E-Mail：Sign In
Tel:Sign In

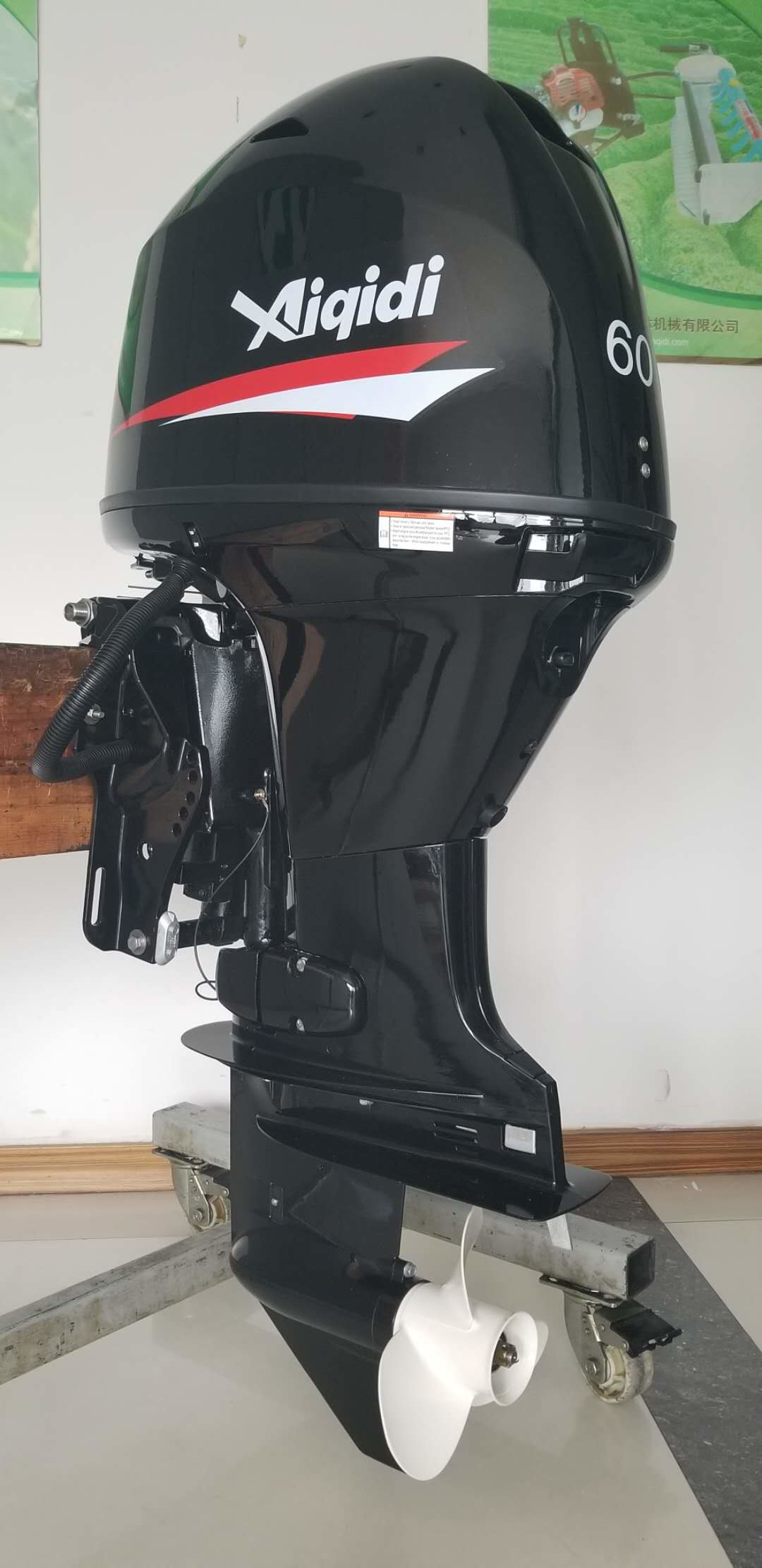

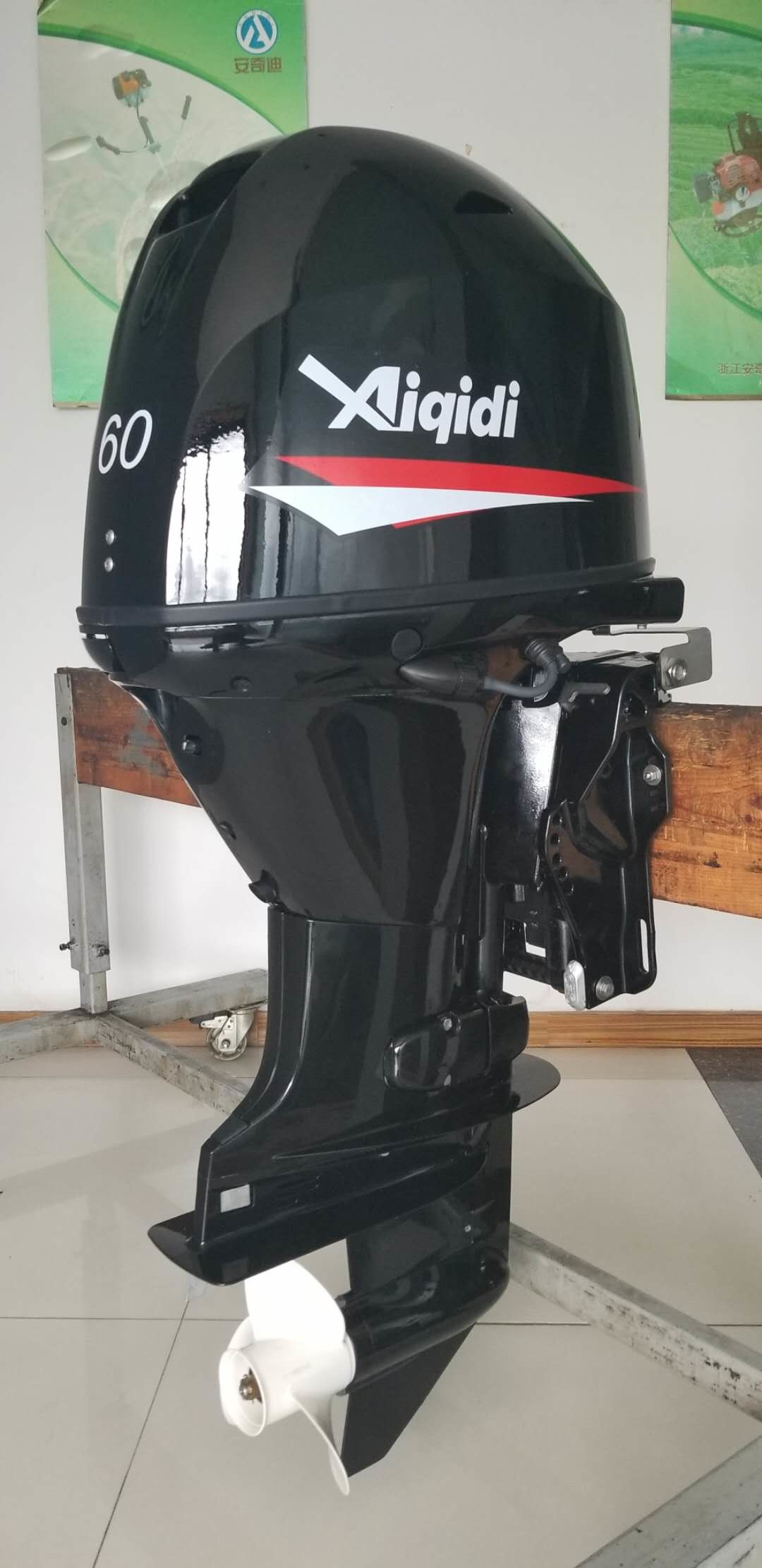

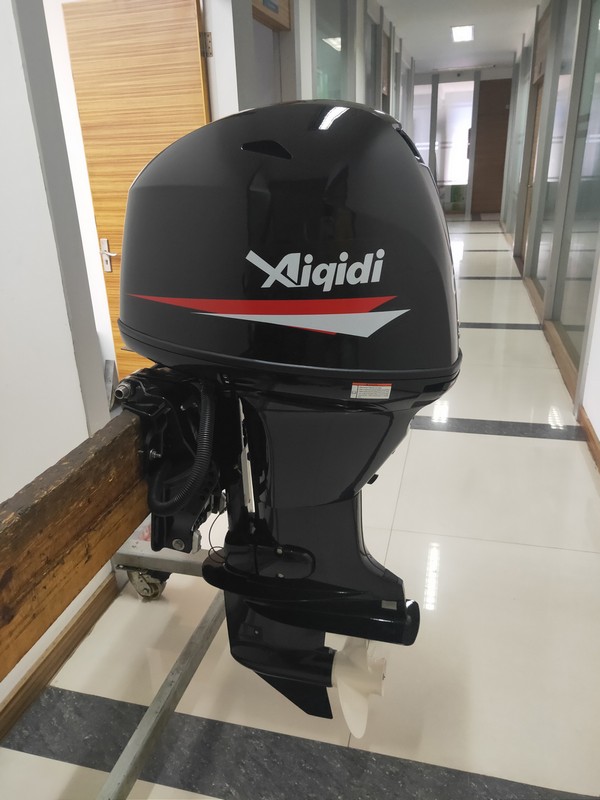

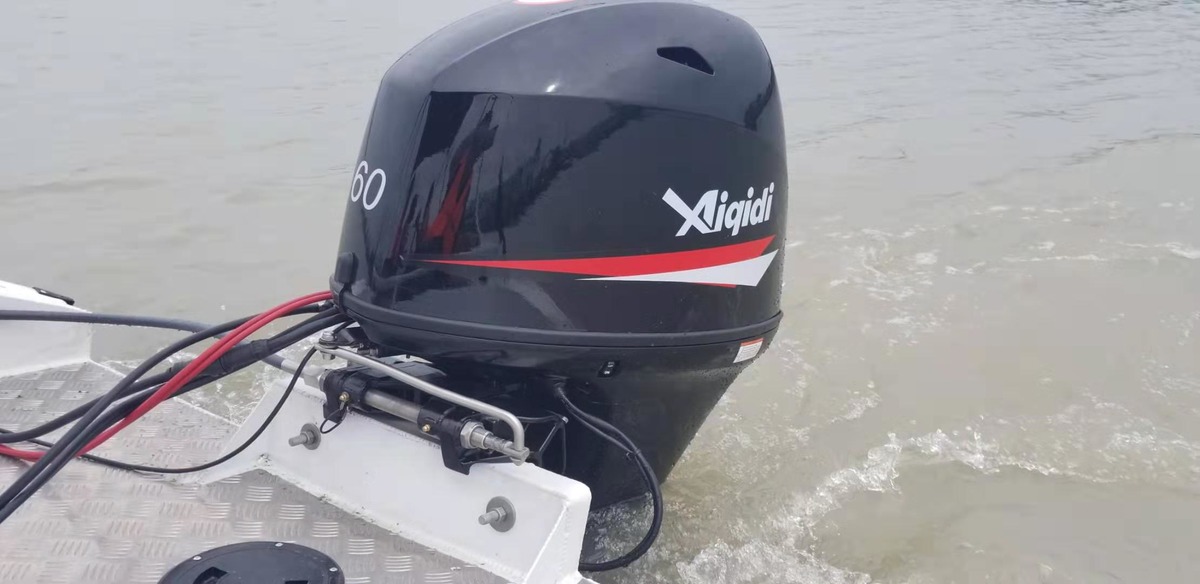

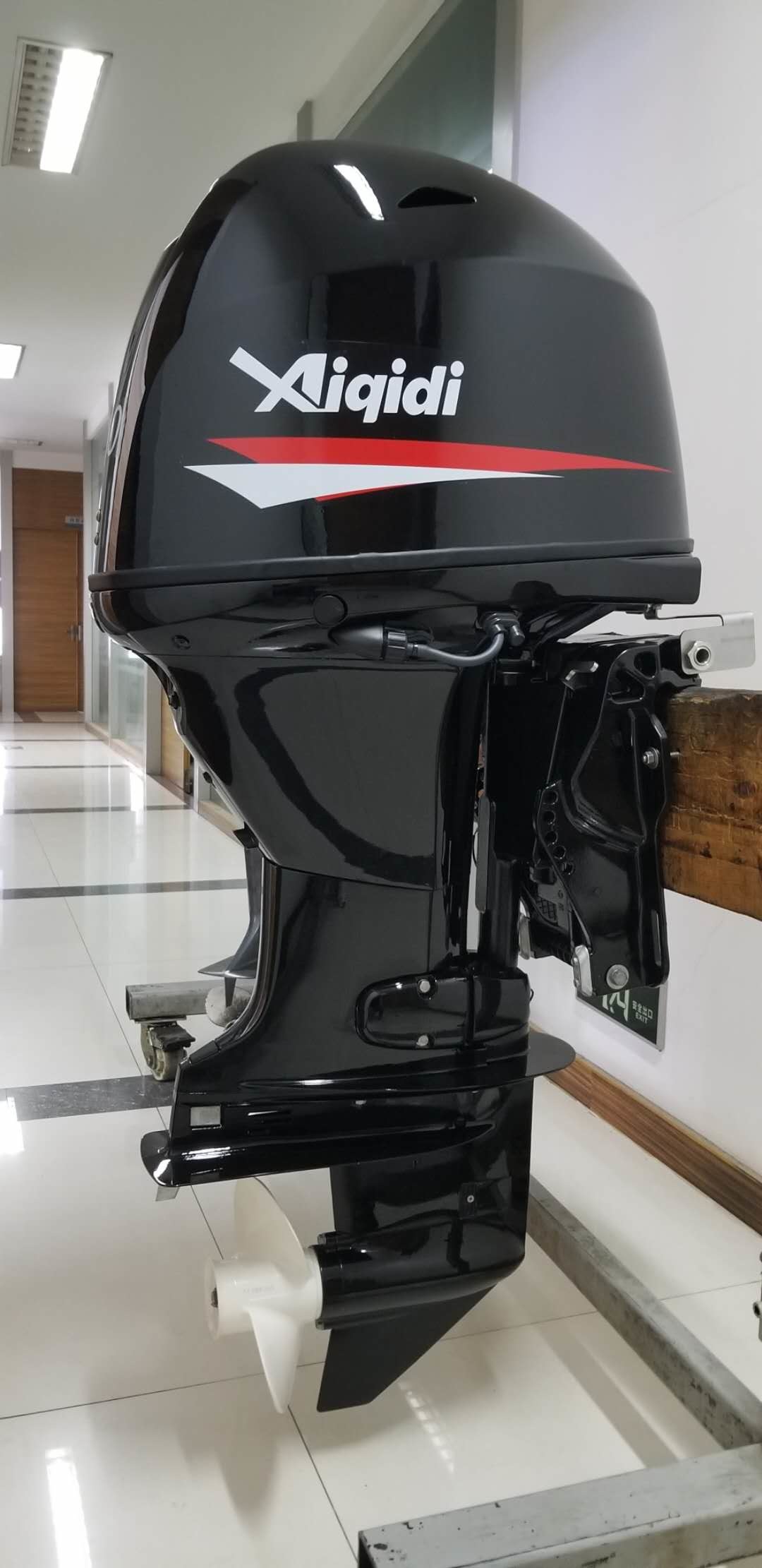

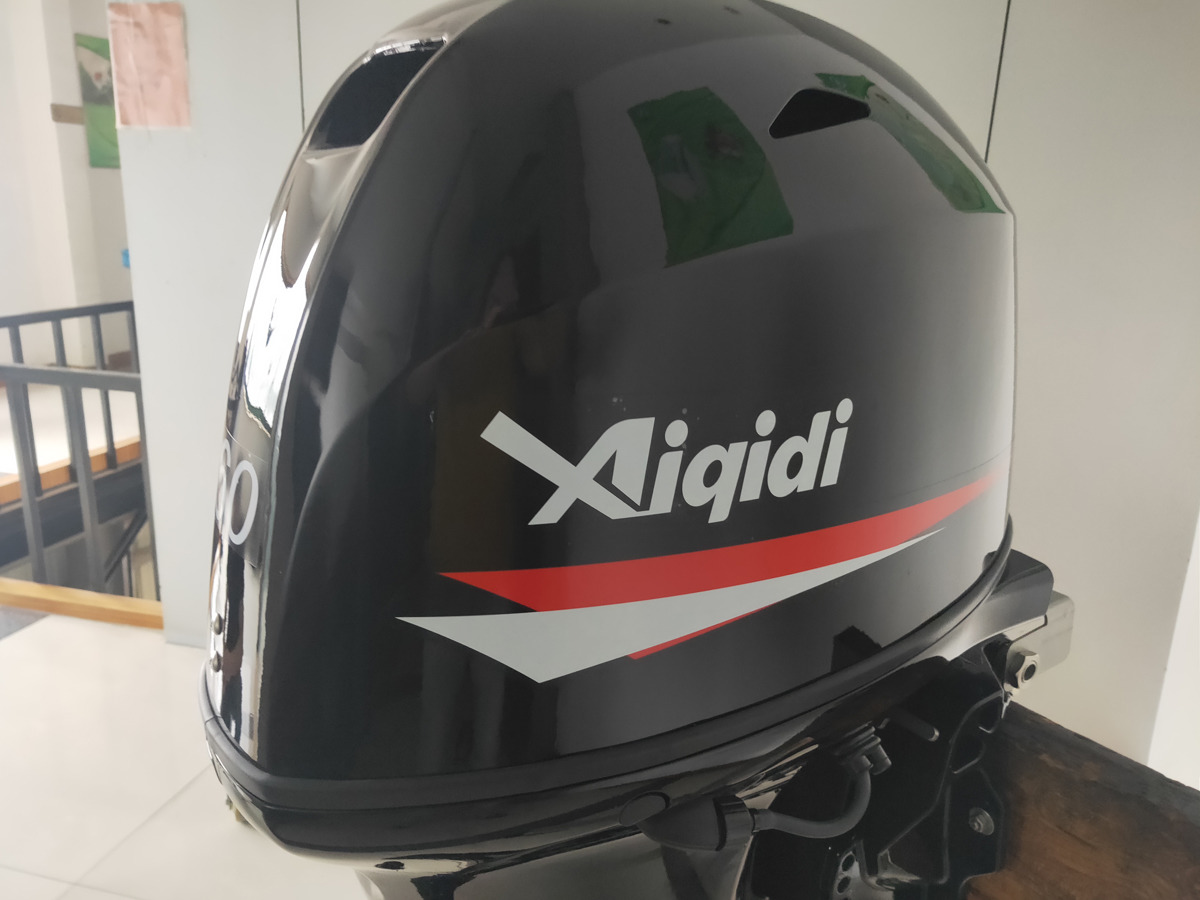

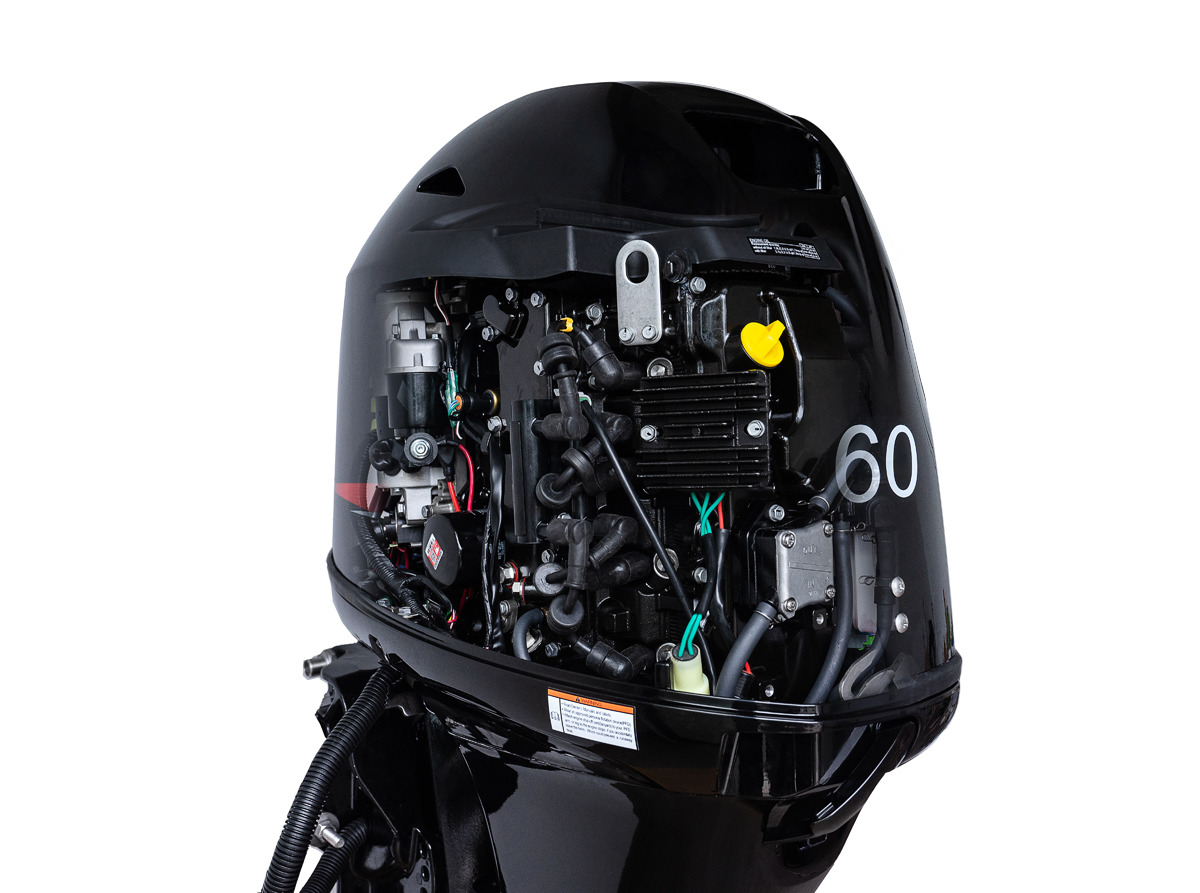

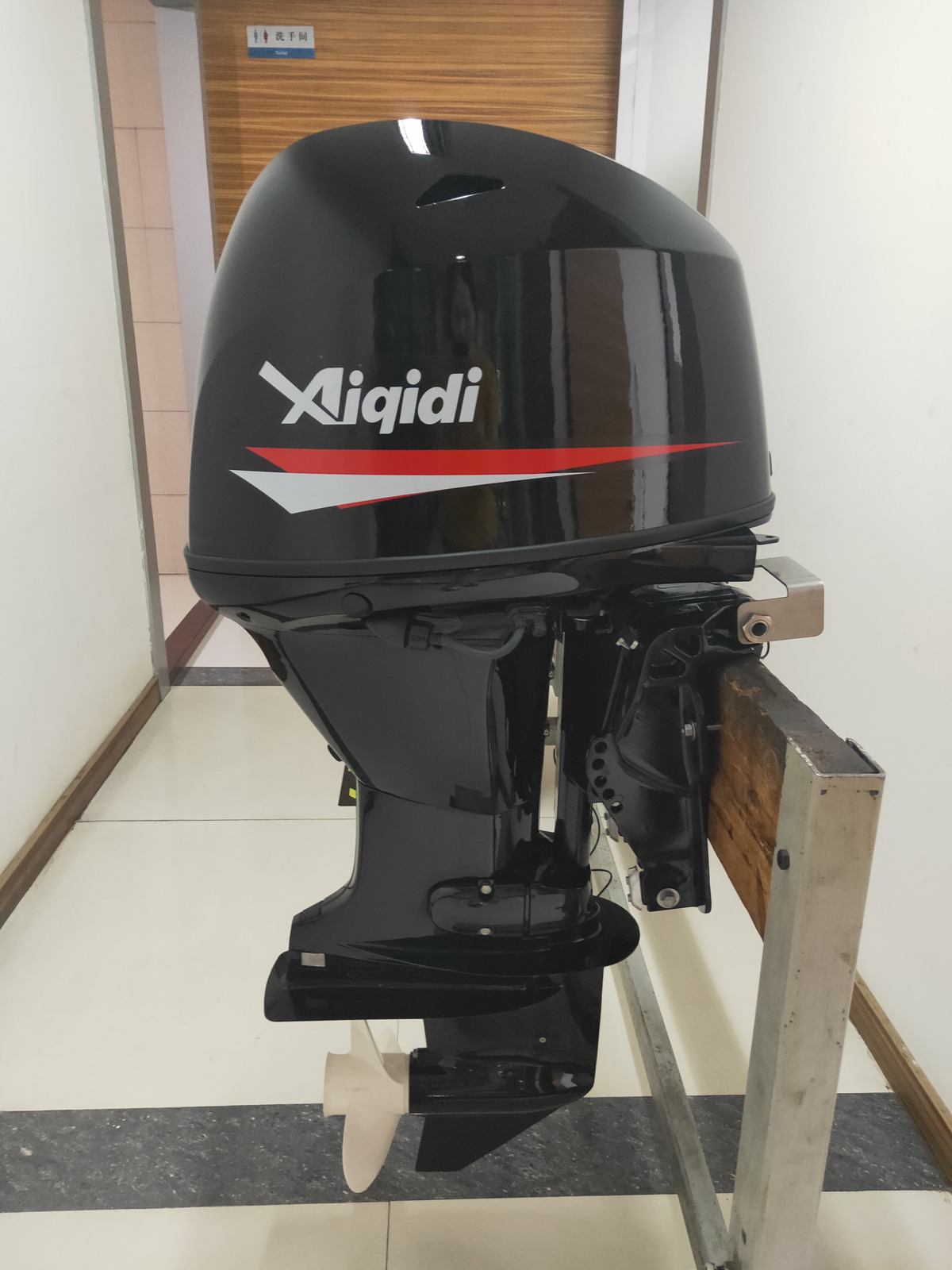

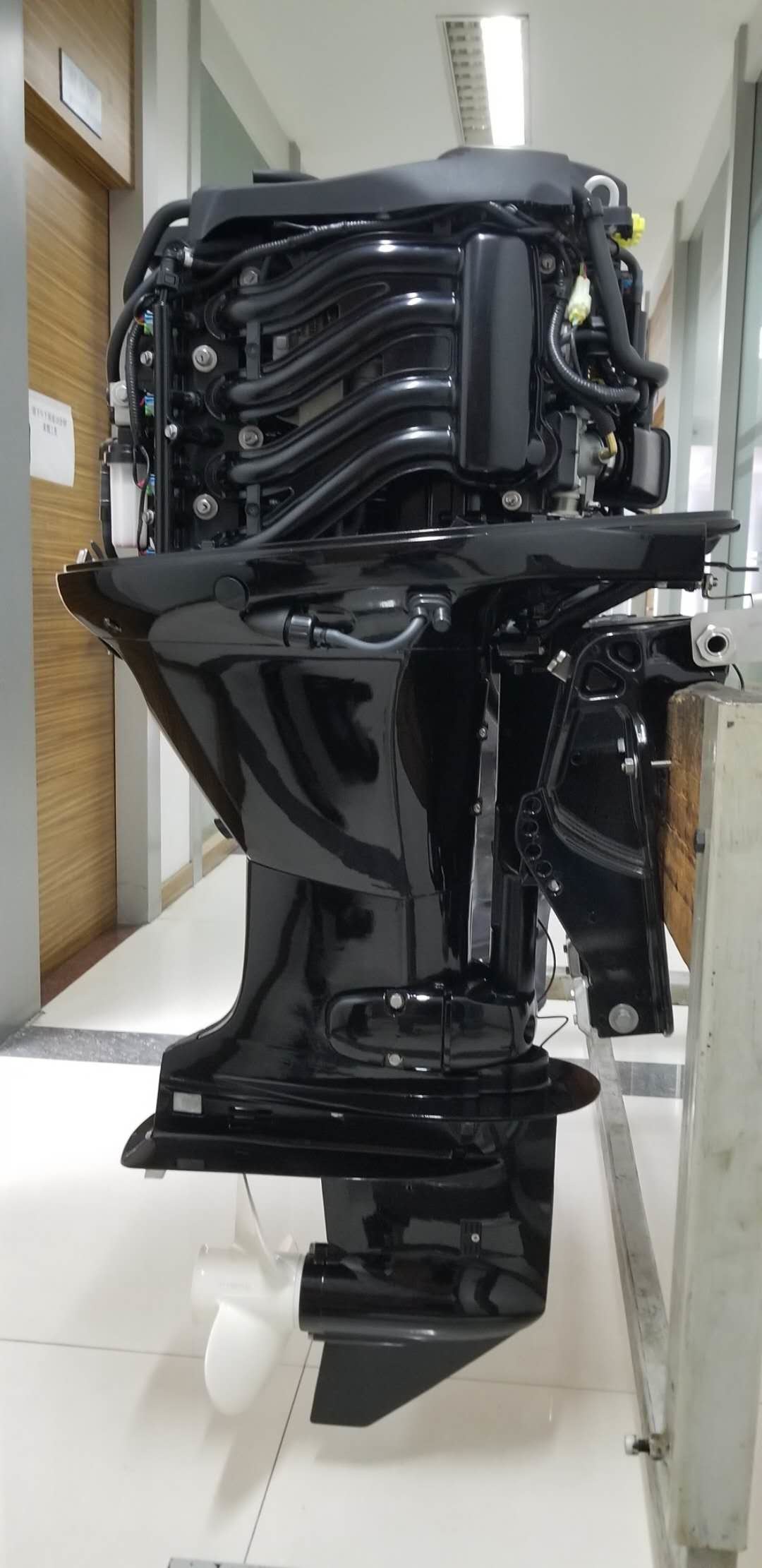

| Aiqidi 60HP OUTBOARD MOTORS SPECIFICATIONS | |||
| ITEM | F60FETL | ||
| Engine type | 4-stroke,4-cylinders, SOHC, 8-valve | ||
| Displacement | 996 cc | ||
| Bore x Stroke mm(in.) | 65.0×75.0(2.56×2.95) | ||
| Max output kw(hp) | 44.1(60)@5500rpm | ||
| Full throttle RPM range | 5000~6000 | ||
| Ignition system | C.D.I. | ||
| Fuel delivery system | Electronic Fuel Injection | ||
| Ignition timing | Micro Computer | ||
| Starting system | Electric start(Turn-key) | ||
| Steering system | Remote control | ||
| Gear shift | Forward-Neutral-Reverse | ||
| Gear ratio | 1.85 (24/13) | ||
| Trim and tilt system | Electric tilt | ||
| Max fuel consumption | 20 L/h | ||
| Fuel tank capacity | 24L | ||
| Sump oil capacity | 2.5L | ||
| Gear oil capacity | 430cc | ||
| Dry weight | 110kg~113kg | ||
| Overall width mm(in.) | 427(16.8) | ||
| Recommended transom height | 508mm (20 in.) | ||
| Alternator output | 12V DC | ||
| Propeller options* | 3-11.12 x 13" (standard) or 3-11.38 x 12" | ||
| *Propeller choice will vary by boat size and application. | |||
| *B=Back control (Tiller control), M=Manual start, S=Short shaft, L=Long shaft, E=Electric start, F=Front control (Remote control),T=Electric tilt | |||
| EFI= Electronic Fuel Injection | |||
| Contact Person: Jane he sales@aniqidi.com Mobile:Wechat/whatsapp:0086-18858682095 | |||
Specifications and requirements
Specifications
TIP:
“AL” stated in the specification data below represents the numerical value for the aluminum propeller installed.
Dimension and weight:
Overall length:
689mm (27.5 in)
Overall width:
386mm (15.2 in)
Overall height L:
1435mm (56.5 in)
Motor transom height L:
527mm (20.7 in)
Dry weight (AL) L:
113KG (249 lb)
Performance:
Full throttle operating range:
5000-6000 r/min
Rate power:
36.8KW (50 HP)
44.1 KW (60HP)
51.5 KW (70HP)
Idle speed (in neutral):
700-800 r/min
Power unit:
Type:
4-stroke SOHC 2L 8 valves
Total displacement:
996 cm3 (60.8 c.i. )
Bore×stroke:
65.0×75.0 mm (2.56×2.95 in)
Ignition system:
TCI
Spark plug (NGK):
DPR6EB-9
Spark plug gap:
0.8-0.9 mm (0.031-0.035 in)
Steering system:
Remote steering
Tiller handle
Starting system:
Electric starter
Manual starter
Starting carburetion system:
Fuel injection
Valve clearance IN (cold engine):
0.15-0.25 mm (0.0059-0.0098 in)
Valve clearance EX (cold engine):
0.25-0.35 mm (0.0098-0.0138 in)
Battery rating (CCA/EN):
430-1080 A
Battery rating (20HR/1EC):
70 Ah
Maximum generator output:
15A (F70)
16A (F60,F50)
Lower unit
Gear shift positions:
Forward-neutral-reverse
Gear ratio:
1.85 (24/13)
Trim and tilt system:
Propeller mark:
G
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Min.pump octane unmber(PON):
86
Min. research octane number (RON):
90
Fuel tank capacity:
24 L (6.34 US gal. 5.28 Imp. gal)
Recommended engine oil:
4-stroke outboard motor oil
Recommended engine oil grade 1:
SAE 10W-30/10W-40/5W-30
API SE/SF/SG/SH/SJ/SL
Engine oil quantity (without oil filter replacement):
1.9 L (2.01 US qt, 1.67 lmp. qt)
Engine oil quantity (with oil filter replacement):
2.1 L (2.22 US qt, 1.85 Imp. qt)
Lubrication system:
Wet sump
Recommended gear oil:
Hypoid gear oil
Recommended gear oil grade:
SAE 90 API GL-4
Gear oil quantity:
0.430 L (0.455 US qt)
0.378 （Imp. qt)
Tightening torque:
Spark plug: 17 Nm (1.73 kgf-m, 12.5 ft-lb)
Propeller nut: 34 Nm (3.47 kgf-m, 25.1 ft-lb)
Engine oil drain bolt: 27 Nm (2.75 kgf-m, 19.9 ft-lb)
Engine oil filter: 18 Nm (1.84 kgf-m, 13.3 ft-lb)
