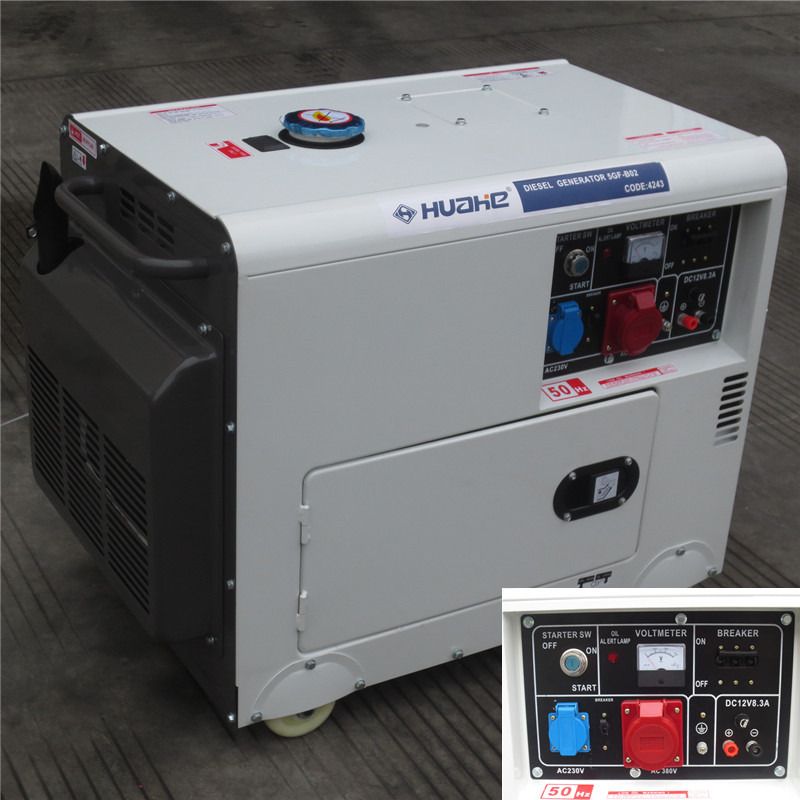

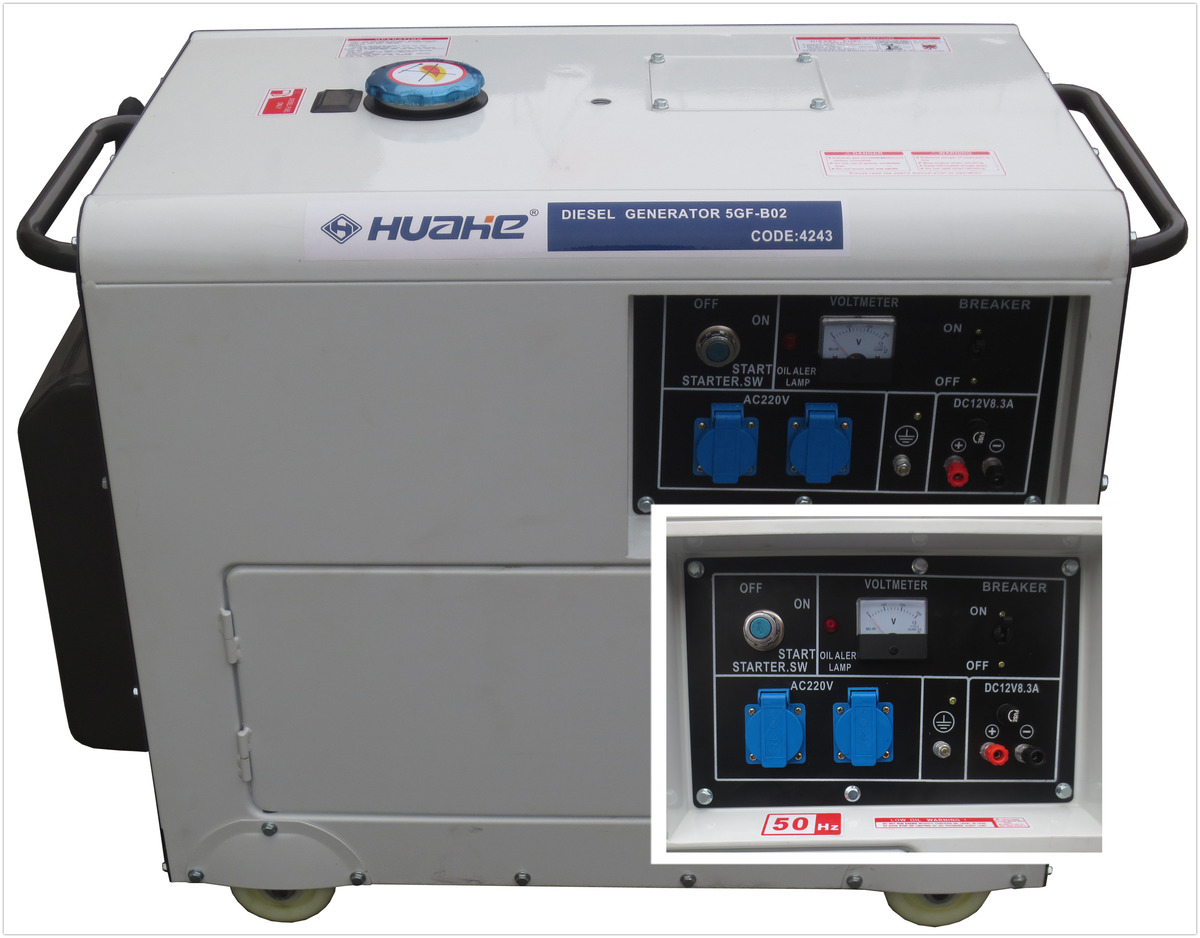

5KW DIESEL GENERATOR SET

Min. Order: 72 PCS

Product Parameters

Serial No. : 5GF-B02

Size（mm）：950*580*740

Material:IRON, ALUMINUM, COPPER

Place of origin:Zhejiang China

Color:ORANGE

Schedule an Appointment

Support level: A

LIBEI VILLAGE,LUQIAO DISTRICT,TAIZHOU CITY,ZHEJIANG PROVINCE

Registered capital:5056

Founded:2005

Number of companies:101-500人

Export scale:

Contact: 施**

E-Mail：Sign In

The detailed information

DIESEL GENERATOR SET

Specification

Model of Gen-set	5GF
Rated power	5kw
Type	Revolving field type 2 pole generator
Frequency	50
Cont.Output(kw)	4.8
Voltage (A.C)(V)	220
Current (A.C)(A)	21.8
Engine Speed(r/min)	3000
Phase	Single phase
Power Factor	1
Excitatioin system	Controlled Constant Self-excitation
D.C output V/A	12V/8.3A
Operation Capacity	12 hour Constant Operation
Coupling Pattern	Straight shaft coupling


Model	186
	air cooled
Cooling Method	Evaporation or Radiator
Starting Method	Hand cranking or electric starting

Excitatioin	Harmonic Excitation or phase compound or brushless
Net Weight	95kgs
Gross Weight	97kgs
Packing Size LWH	950580740mm

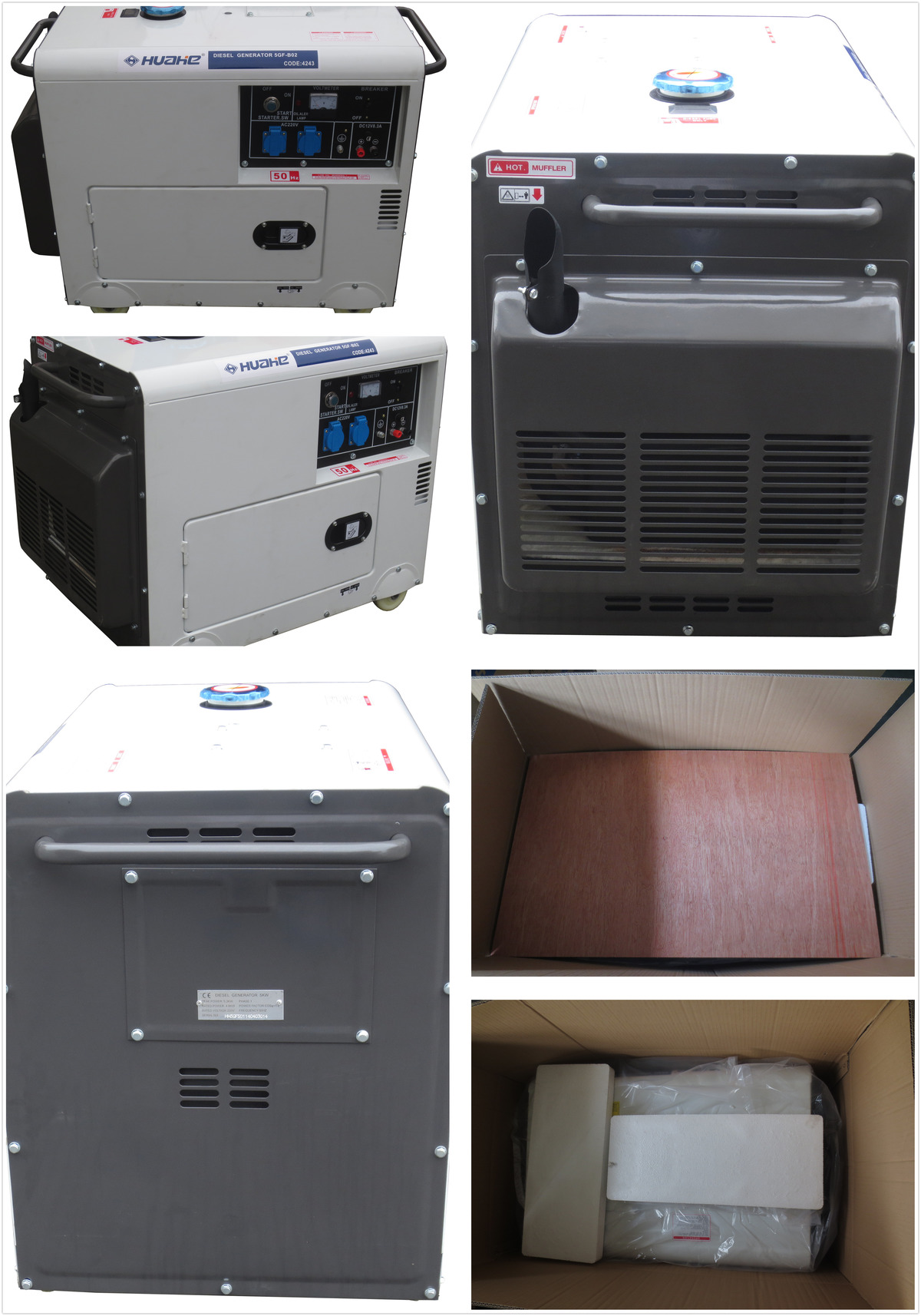

Product exhibition plan
