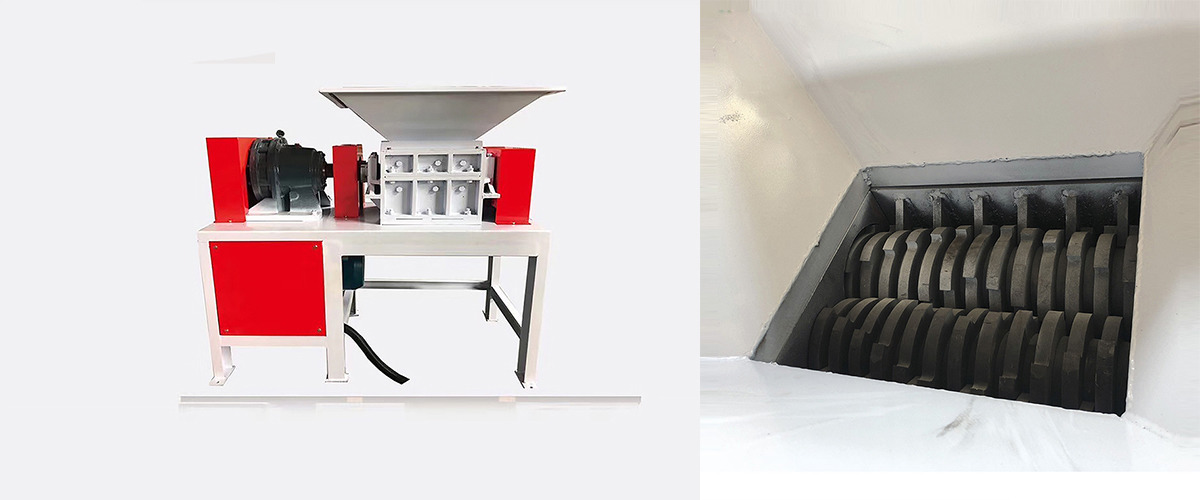

Shredder QD-400

Shredder  QD-400

 Qida Shredders 400/ 600/ 800/ 1200 are widely used in waste wires, cables, items made of PVC,PE, PP, PS and ABS, glass, copper clad laminate and scrap,

waste rubber (such as waste tires), waste plastic wood pipes, large pieces of materials broken. The shape of the crushing material is unlimited,like frames,

boxes, hollow items, tubes, balls and other irregular shaped items are all available.

1.Product descriptions：

Qida Double Shaft Reinforcing and Strengthening Shredders have various kinds,like shredder QD-400、QD-600、QD-800、QD-1200,

pls check the corresponding parameters for reference. Shredder 400 has a single motor, others all have double motors.

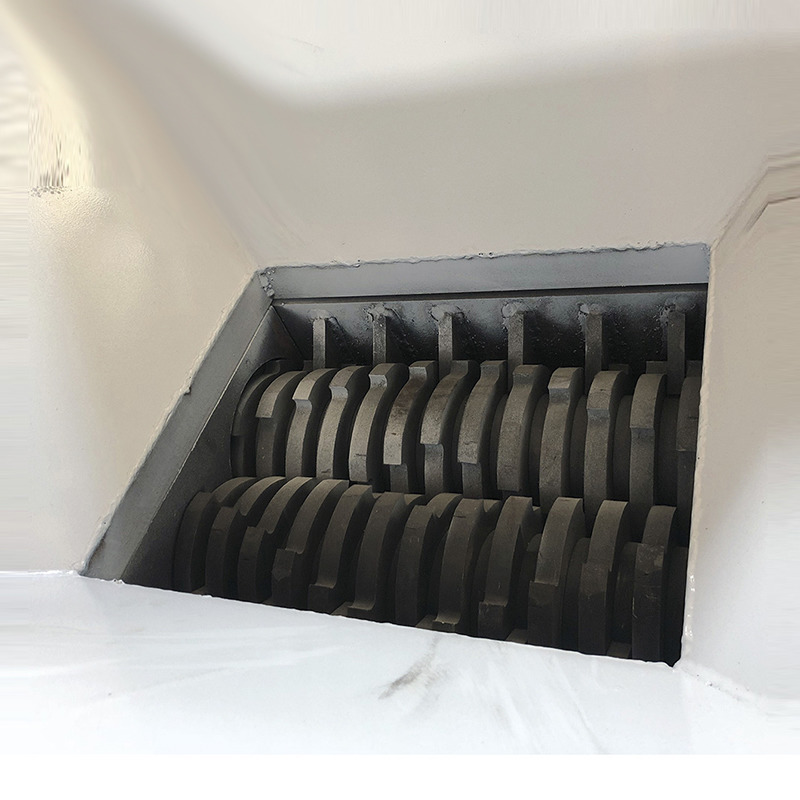

Qida shredders adopt a multi-axis double-roller design. It has the advantages of low noise, large torque and large crushing chamber.

The unique design of the cutter made of special steel through special treatment has a large gripping force for large materials and

 hollow materials and a multi-ability of cracking,breaking,extrusion etc., the crushing granularity is concentrated,and the crushing range is wide.

2.Technical parameters：

Item No.:                                        QD-400

Overall dimension(LxWxH) ：       151*95*125cm

Machine weight:                             1000kg

Output/hour:                                   500-1200kgs

Motor Power:                                 15KW

Blade style：                                  Claw

1. 3.Equipment features：
2. 1) Moving blades and fixed blades are made of D2 material;
3. 2) Major electrical components are of well-known brands;
4. 3)Using microcomputer technology, including start, stop and reverse characteristics of rotor;

5. 4) Automatic reverse sensor protects the machine from overloading and jamming;
6. 5) Designed with split bearing chock technology for fast and efficient blade replacement;
7. 6) Specially designed rotors are extremely wear-resistant;
8. 7) The design of moving blades will reduce running costs and downtime;
9. 8) Extremely flexible machine capable of handling many different materials;
10. 9) Multiple protection of machinery and electrical appliances;
