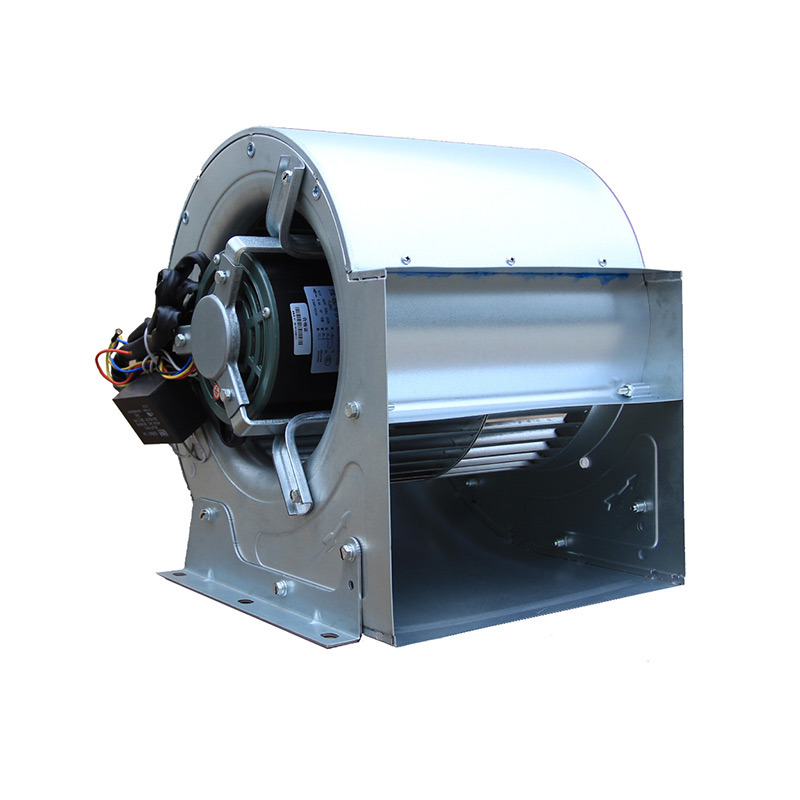

LKZ Forward Curved Multi-blades Centrifugal Fan

LKZ Forward Curved Multi-blades Centrifugal Fan

Description:

LKZ series of centrifugal air-conditioning fans are based on LKT series. The fans are low noise fans

 which are newly developed according to the international advanced similar products. With single phase motor direct drive,

the fans are characterized by high efficiency, low noise, easy speed regulation, compact structure.

They are the ideal subsidiary equipment for variable air volume(VAV) air conditioner, ducted air conditioning unit, and other heating, purification equipment.

Specification:

Impeller Diameter: 200 ~320mm

Air Volume Range: 800~5000m3/h

Total Pressure Range: 68~624Pa

Sound Range: 50~73dB(A)

Drive Type: Single-phase motor direct drive

Model: 7 7, 8 8, 9 7, 9-9, 10-8, 10-10 r 12-9, 12-12 Non standard products are available according to customer s requirements.

           Brushless DC motor can be used

Applications: Ideal subsidiary equipment for variable air volume (VAV) air conditioner, ducted air conditioning unit, and other heating,purification equipment.
